Tlakomer

Swagelok PGI Pressure Gauge 0-10 bar 1/4 NPT Male 63MM

SKU: 6008

Na sklade

DODÁVKA 24/7 MOŽNÁ

Použité
Získané z pracovného prostredia

Cena na vyžiadanie

Použité
Získané z pracovného prostredia

Bez DPH: €45,00 (1 dostupné)

Vrátane DPH: €54,45

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Dôležité: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Záručné lehoty podľa podmienok

Nový 12 mesiace

Zrenovované 3 mesiace

Použité DOA

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

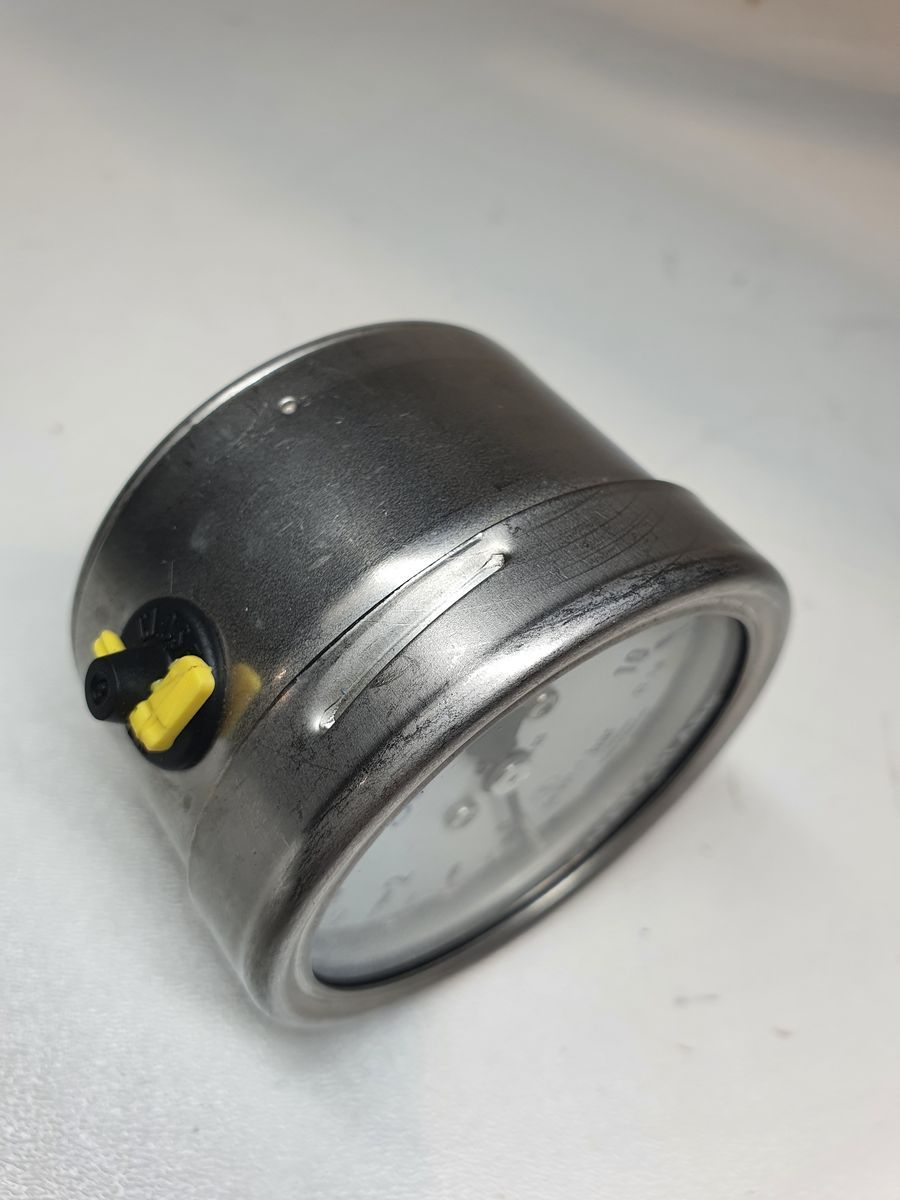

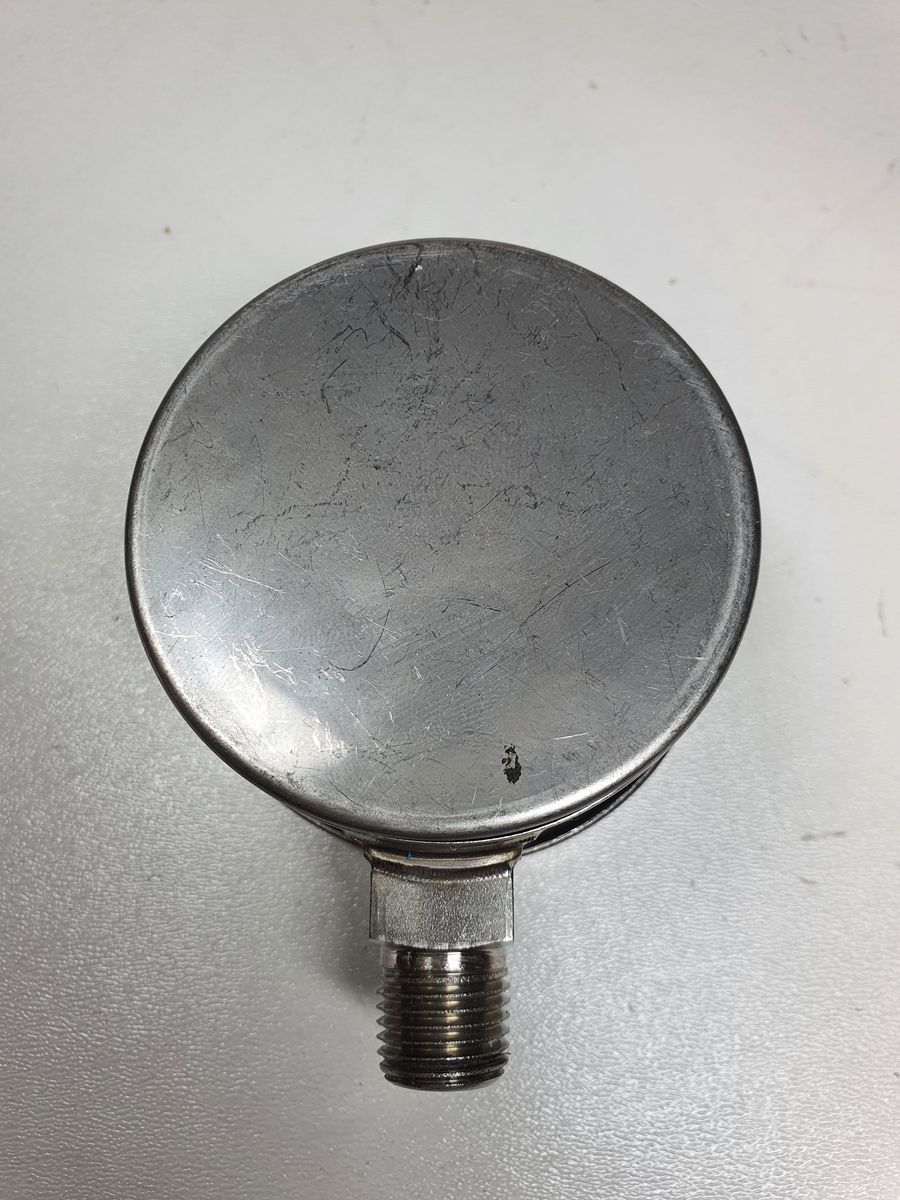

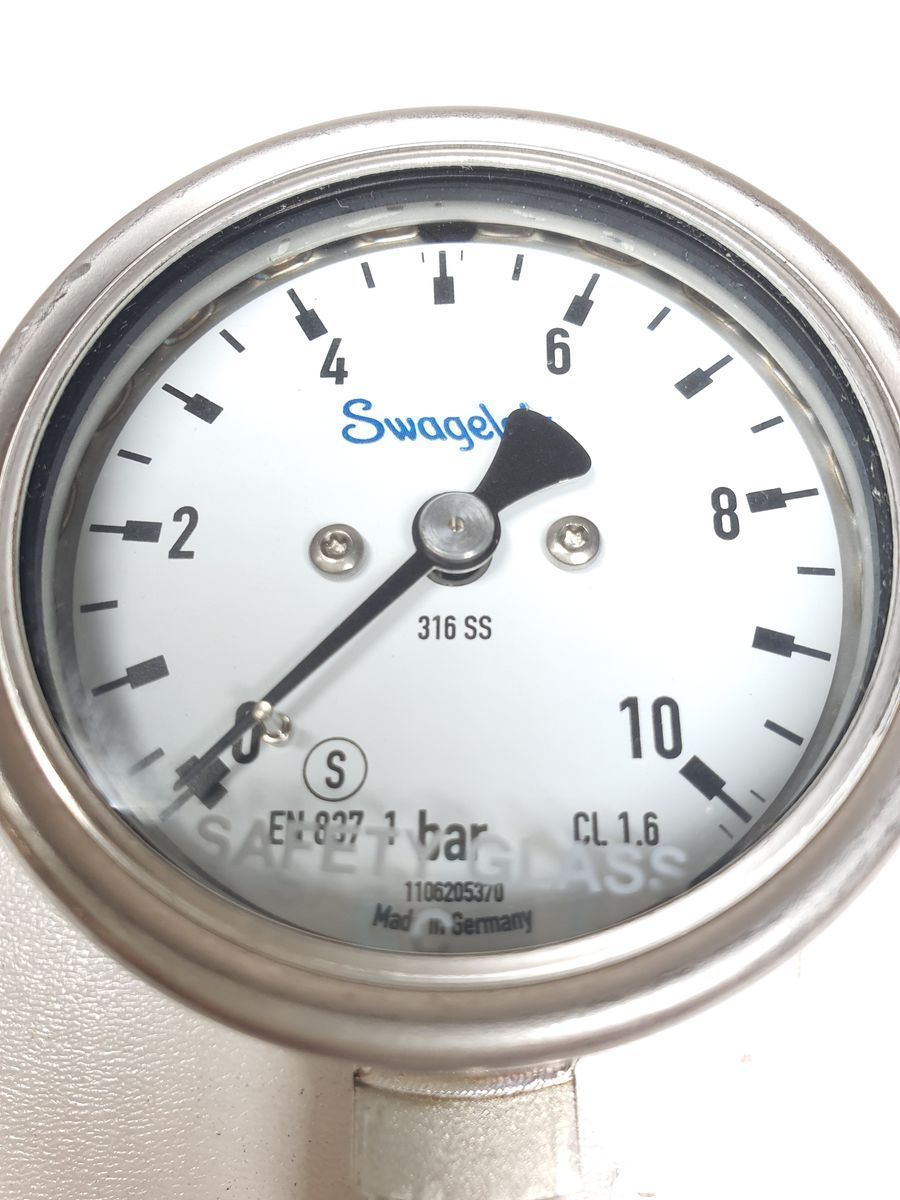

The Swagelok Pressure Gauge 0-10 bar, CL 1.6, 316SS

Parameter	Specification
Standard Compliance	EN 837-1 (EU mechanical pressure gauge standard)
Dial Size	63 mm (2.5 in)
Pressure Range	0–10 bar (0–145 psi)
Accuracy Class	±1.6% of full scale
Case Material	Stainless steel
Wetted Materials	AISI 316 stainless steel
Window	Polycarbonate or tempered glass (variant dependent)
Safety Glass	Type C
Measuring Element	Bourdon tube mechanism
Temperature Range	-20°C to +60°C (configuration dependent)
Vibration Resistance	Optional liquid-filled case
Process Connection	1/4" NPT
Mounting Type	Lower mount (Code “C”; center back or bottom connection depending on variant)
