Phoenix Contact QUINT-PS/1AC/24DC/20
SKU: 37003
Na sklade
Informácie o záruke
Dôležité: All warranties are our own warranties and do not cover factory or manufacturer warranties.

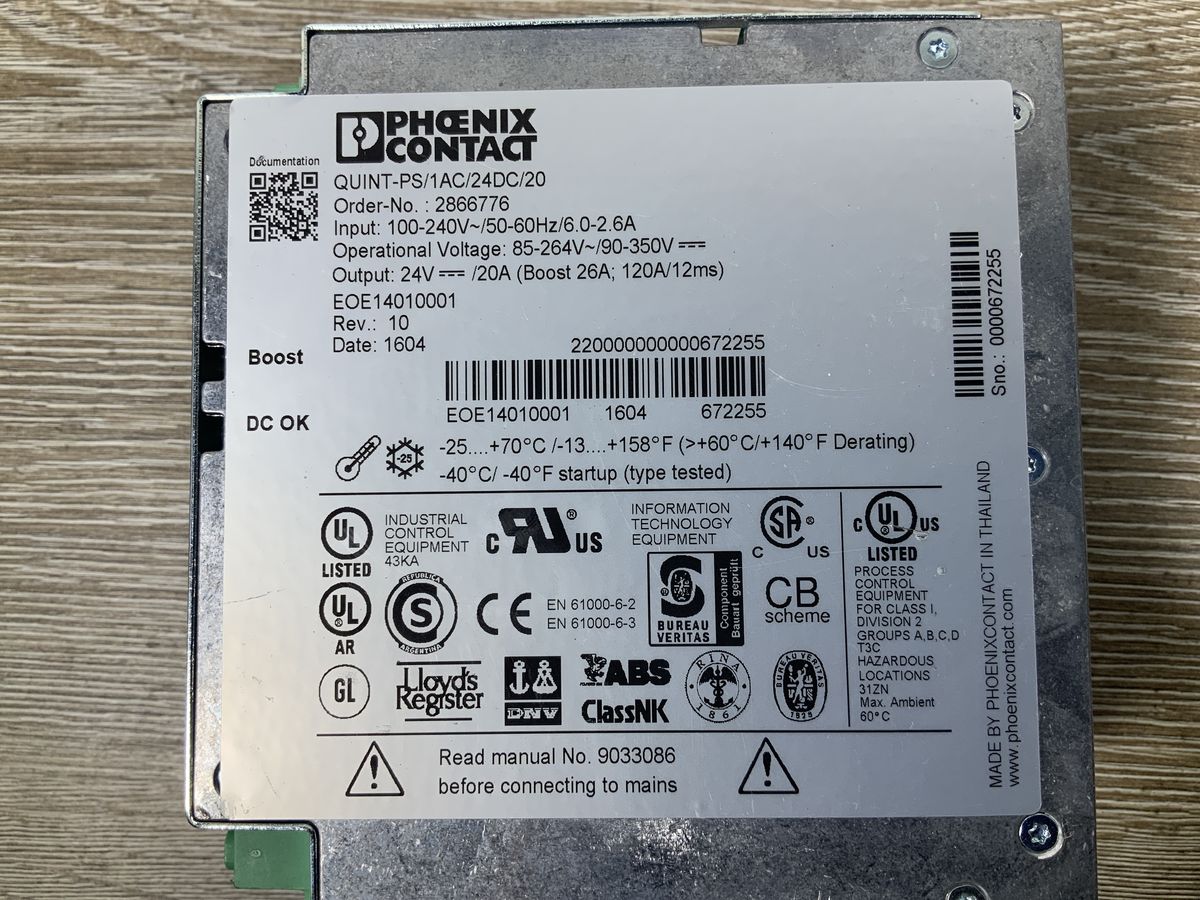

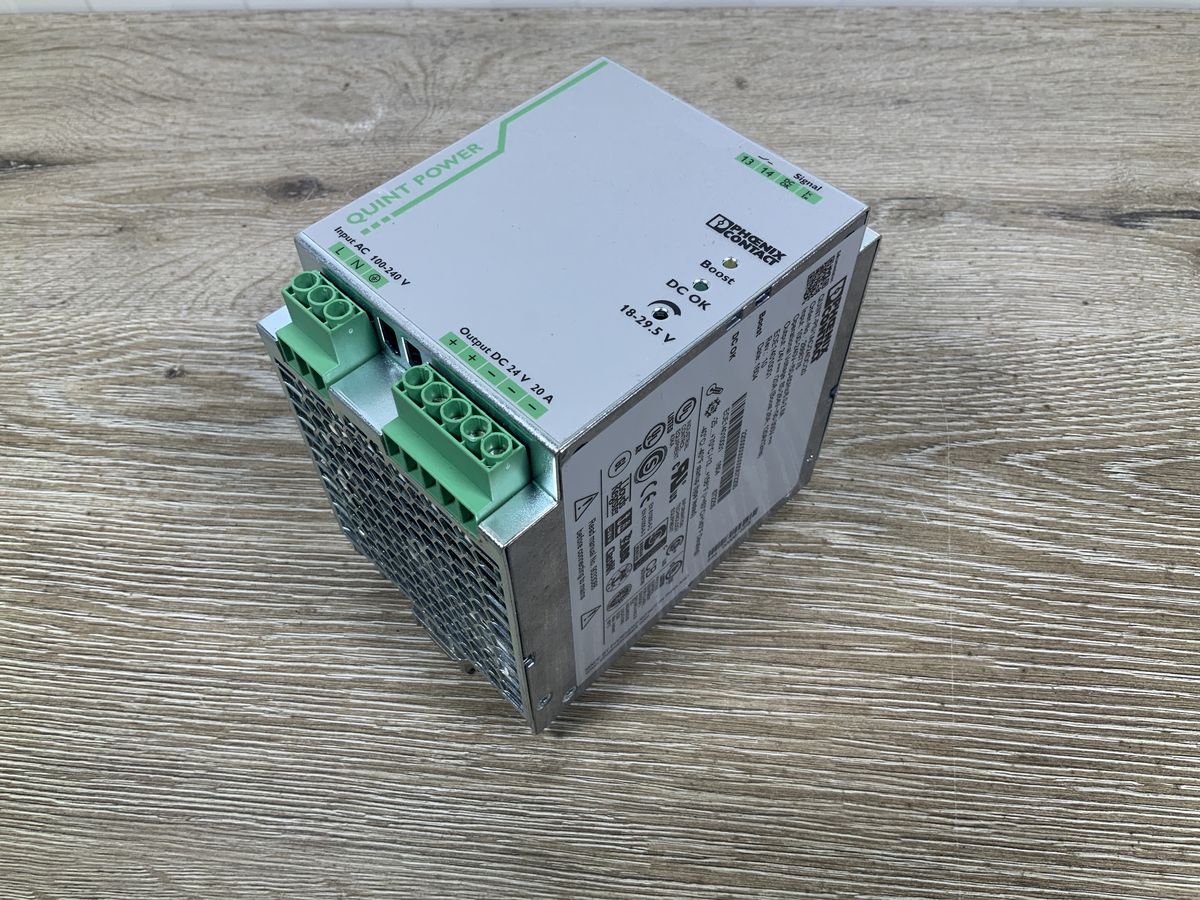

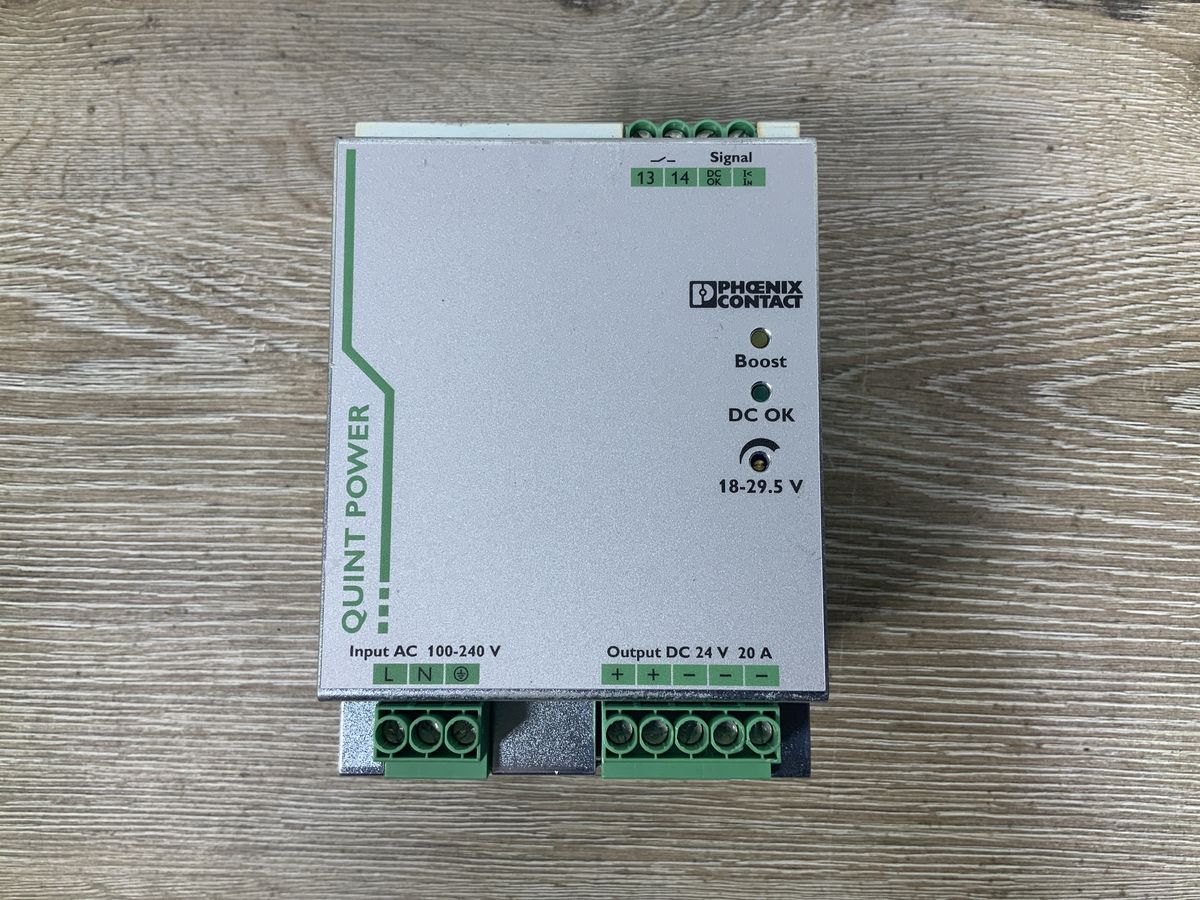

The Phoenix Contact QUINT-PS/1AC/24DC/20 is a primary-switched DIN rail power supply unit designed for industrial automation systems. It accepts a single-phase AC input voltage range from 100 to 240 V AC and provides a regulated 24 V DC output up to 20 A (480 W). The unit features dynamic power boost performance as well as status indicators for Boost and DC OK operation.
Specifications – QUINT-PS/1AC/24DC/20
| Parameter | Specification |
|---|---|
| Input Voltage | 100-240 V AC ~ 50-60 Hz (6.0-2.6 A) |
| Operational Voltage Range | 85-264 V AC / 90-350 V DC |
| Output Voltage | 24 V DC |
| Output Current | 20 A (Boost 26 A; 120 A / 12 ms) |
| Output Adjustment Range | 18 - 29.5 V DC |
| Operating Temperature | -25 °C to +70 °C |
| Mounting Type | DIN Rail |
| Model | QUINT-PS/1AC/24DC/20 (datasheet) |
| Product Description | Primary-switched power supply unit, QUINT POWER, SFB Technology (datasheet) |
| Nominal Input Voltage | 100 V AC ... 240 V AC (datasheet) |
| Input Voltage Range | 85 V AC ... 264 V AC / 90 V DC ... 350 V DC (datasheet) |
| Nominal Output Voltage | 24 V DC ±1% (datasheet) |
| Output Voltage Setting Range | 18 V DC ... 29.5 V DC (datasheet) |
| Nominal Output Current | 20 A (-25 °C ... 60 °C) (datasheet) |
| POWER BOOST Output Current | 26 A (-25 °C ... 40 °C permanent) (datasheet) |
| Output Power | 480 W (datasheet) |
| Dimensions (W x H x D) | 90 mm x 130 mm x 125 mm (datasheet) |
| Weight (excluding packing) | 1608 g (datasheet) |
| Connection Method | Screw connection (datasheet) |
| Conductor Cross Section Solid (Input) | 0.2 mm² ... 6 mm² (datasheet) |
| Conductor Cross Section Flexible (Input) | 0.2 mm² ... 4 mm² (datasheet) |
| Degree of Protection | IP20 (datasheet) |
| Ambient Operating Temperature | -25 °C ... 70 °C (datasheet) |
×
![]()
