Parker B32-2110A-100
SKU: 4041
Na sklade
Informácie o záruke
Dôležité: All warranties are our own warranties and do not cover factory or manufacturer warranties.

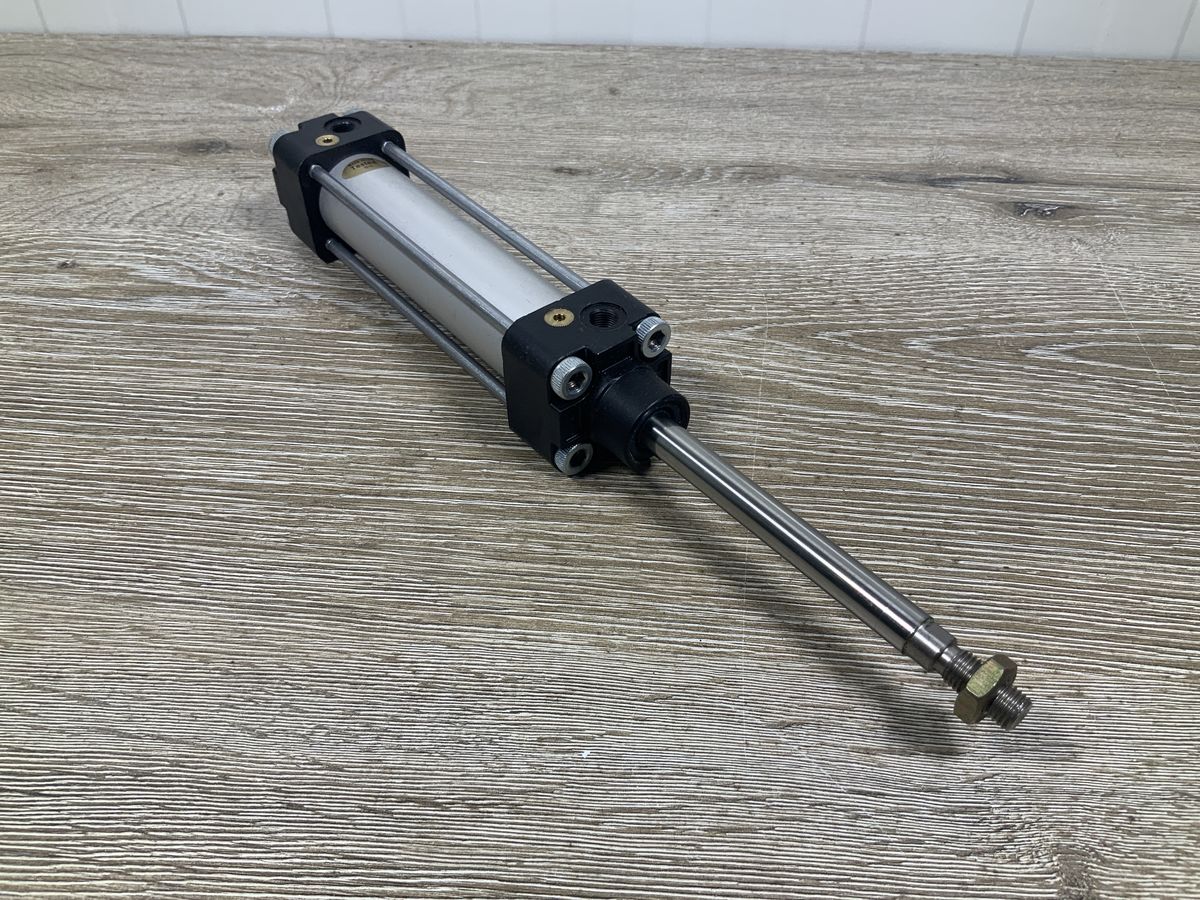

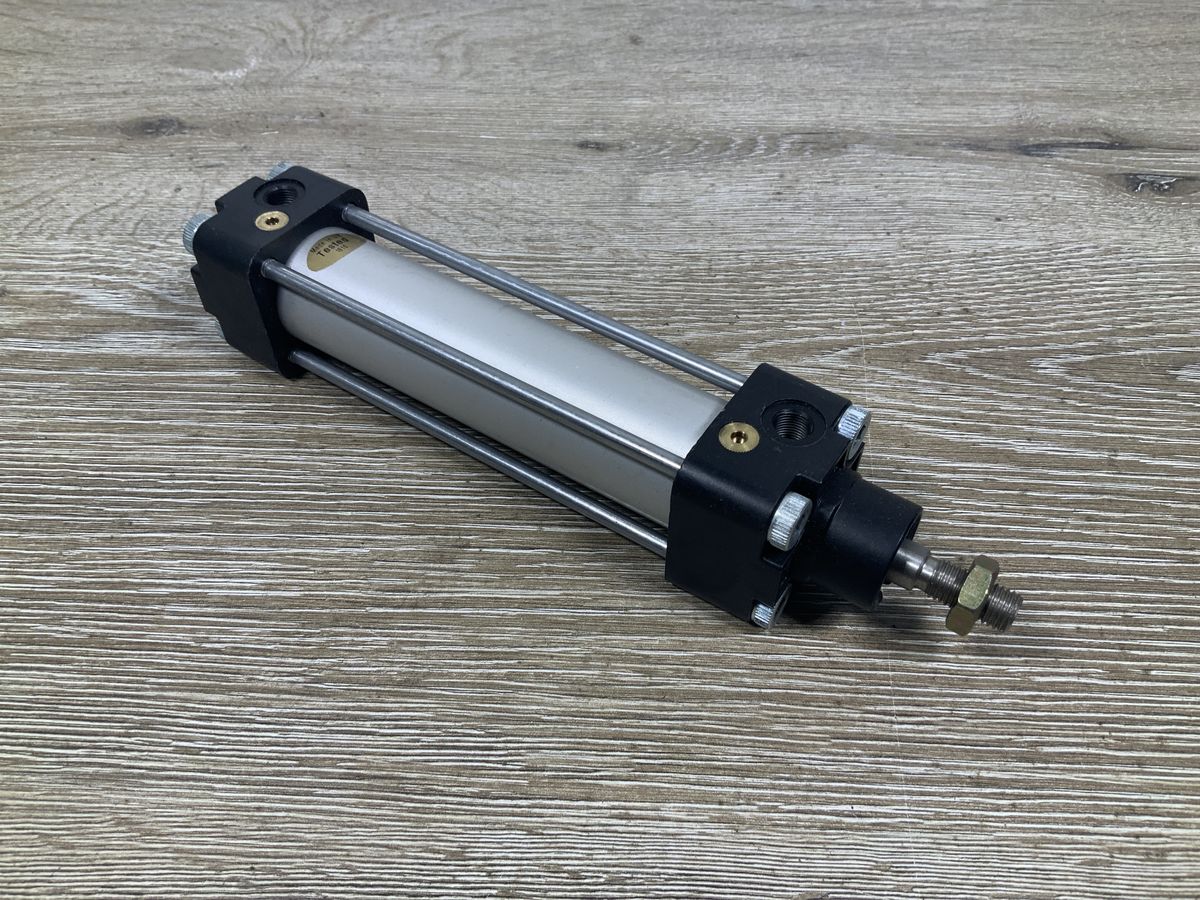

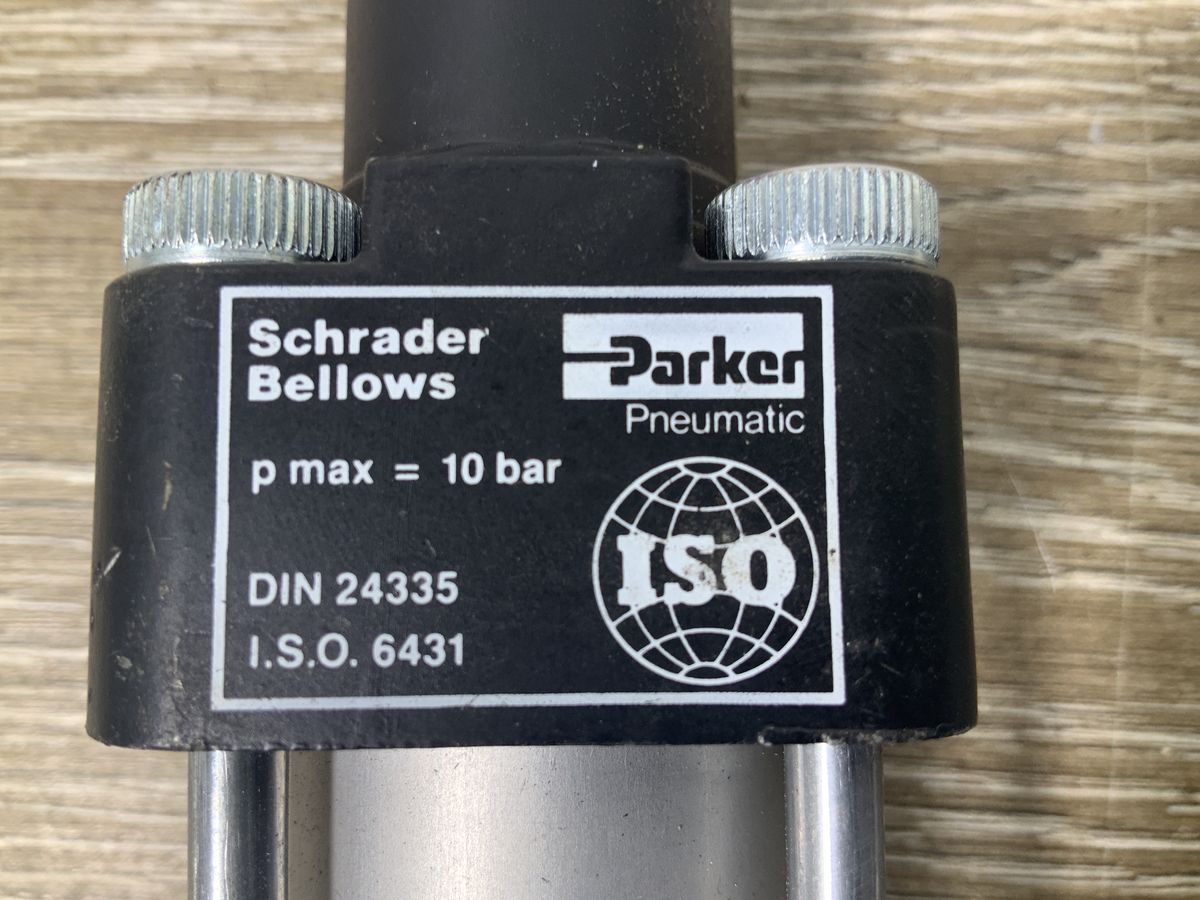

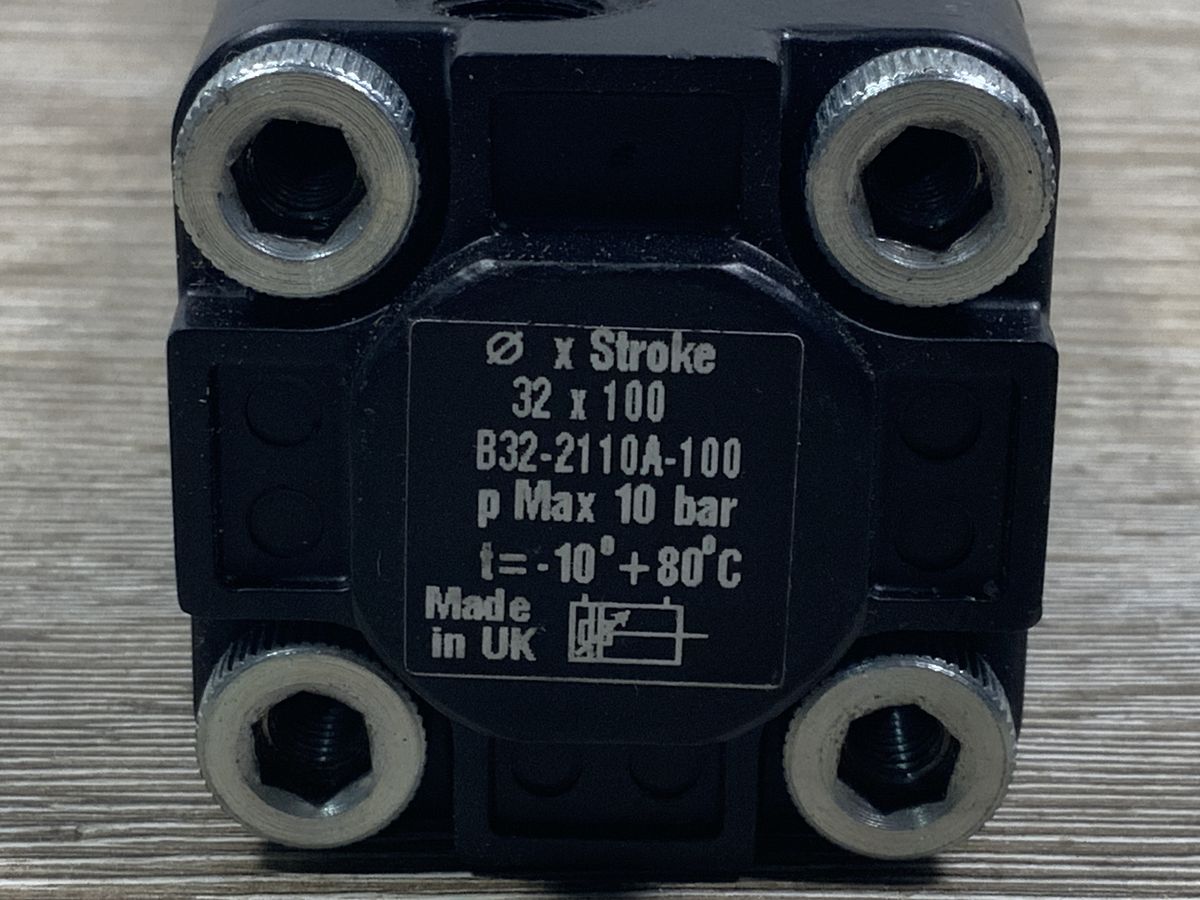

The Parker Schrader Bellows B32-2110A-100 is a tie-rod pneumatic cylinder built to ISO 6431 and DIN 24335 standards. It features a 32 mm bore diameter and a 100 mm stroke length with a maximum operating pressure of 10 bar. Designed for industrial motion and automation tasks, it operates reliably within an ambient temperature range of -10°C to +80°C.
Specifications – B32-2110A-100
| Parameter | Specification |
|---|---|
| Bore | 32 mm |
| Stroke | 100 mm |
| Maximum Pressure | 10 bar |
| Temperature Range | -10°C to +80°C |
| Standard | ISO 6431 / DIN 24335 |
| Country of Origin | United Kingdom |
×
![]()
