Merlin Gerin multi 9 C60N C10

SKU: 28009

Na sklade

Vyberte stav

Used

Bez DPH: €18,00 (2 dostupné)

Vrátane DPH: €21,78

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Informácie o záruke

Dôležité: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Záručné lehoty podľa podmienok

Nový 12 mesiace

Zrenovované 6 mesiace

Použité 3 mesiace

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

Popis

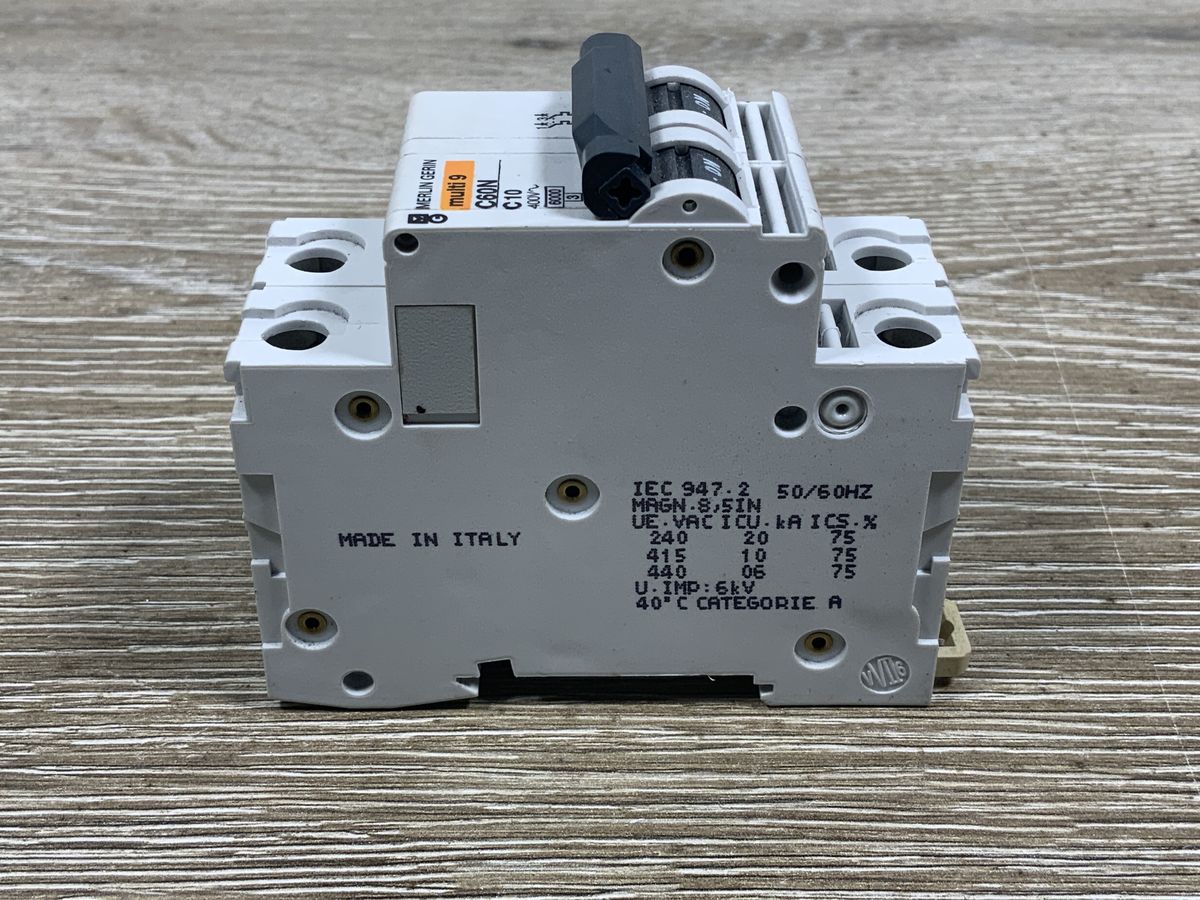

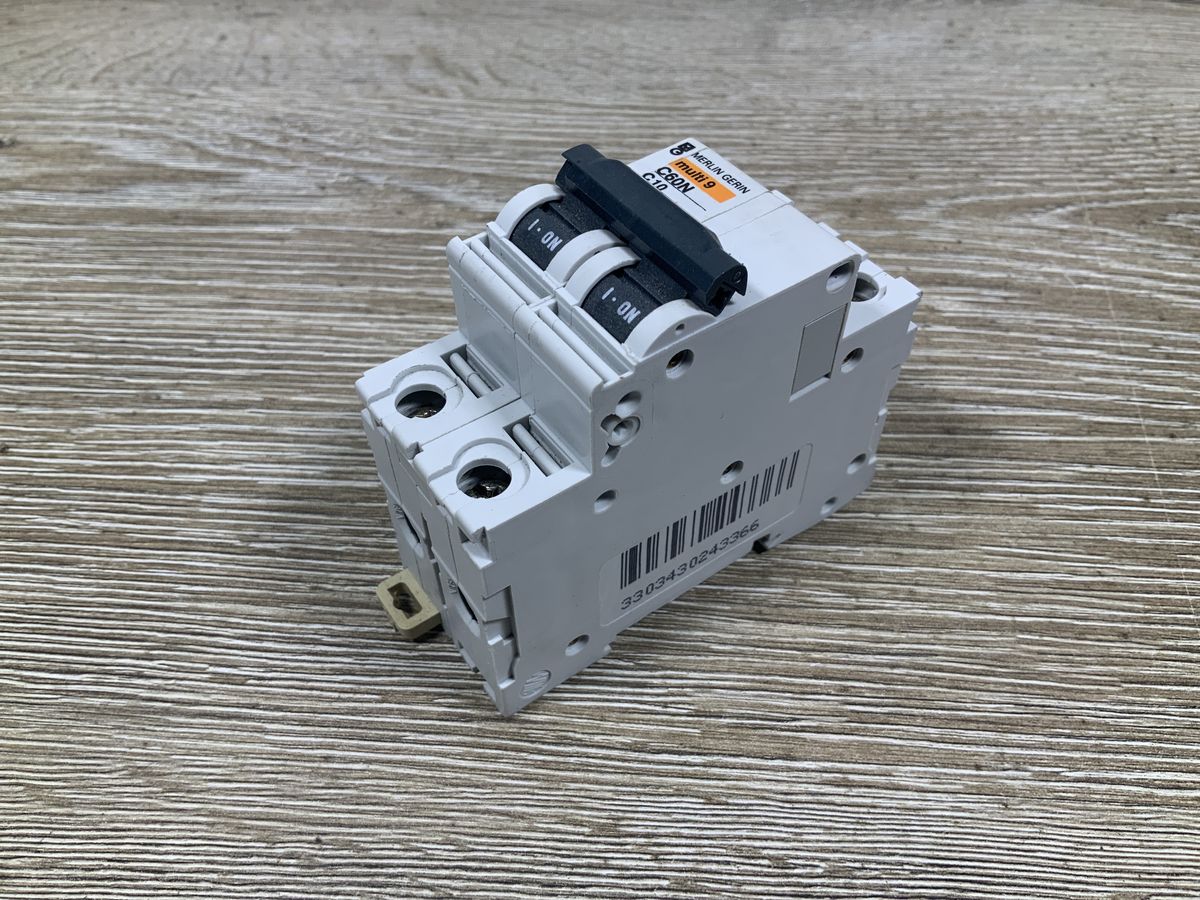

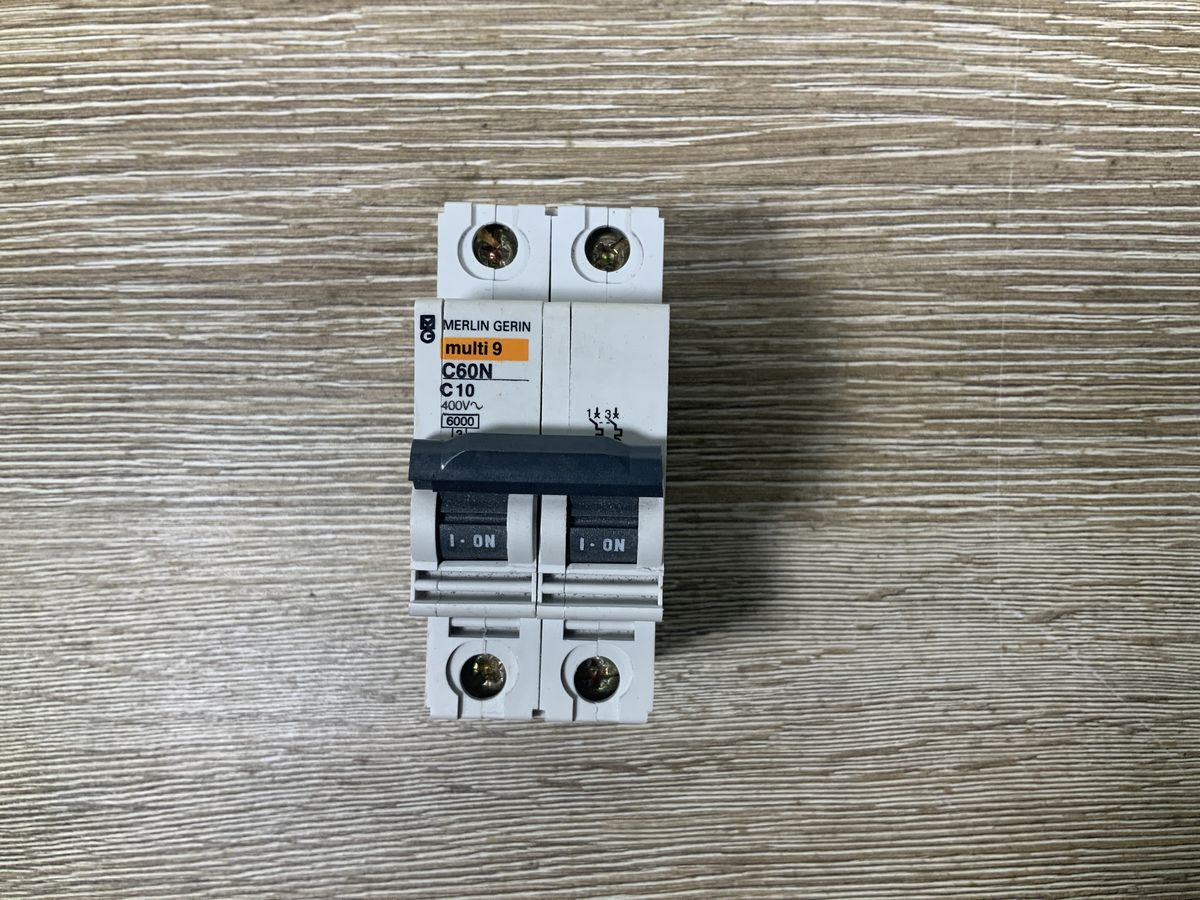

The Merlin Gerin multi 9 C60N C10 is a two-pole miniature circuit breaker (MCB) rated for 10 A and a operating voltage of 400 V AC. Designed for DIN-rail installation in electrical distribution panels, it provides overcurrent and short-circuit protection. It features a C-curve tripping characteristic and a 6000 A breaking capacity rating according to IEC standards.

Specifications – multi 9 C60N C10

Parameter	Specification
Number of Poles	2-Pole
Rated Current	10 A
Tripping Curve	C
Rated Voltage	400 V AC
Breaking Capacity	6000 A (6 kA)
Standard	IEC 947-2
Impulse Withstand Voltage (Uimp)	6 kV
Frequency	50/60 Hz
Country of Manufacture	Italy
