Pneumatické pohony

Festo DNU-32-50-PPV-A

SKU: 4038

Na sklade

Vyberte stav

Used

Bez DPH: €30,00 (1 dostupné)

Vrátane DPH: €36,30

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Informácie o záruke

Dôležité: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Záručné lehoty podľa podmienok

Nový 12 mesiace

Zrenovované DOA

Použité DOA

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

Popis

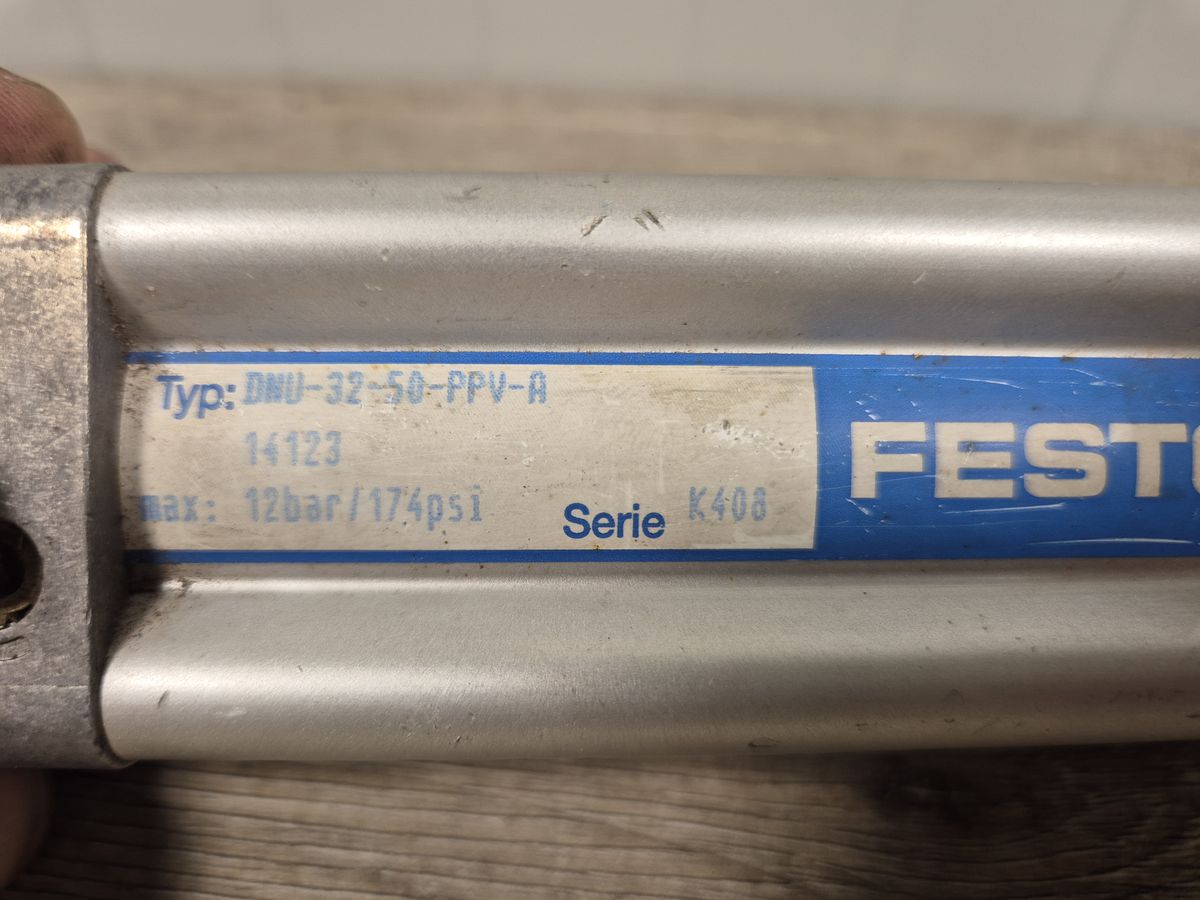

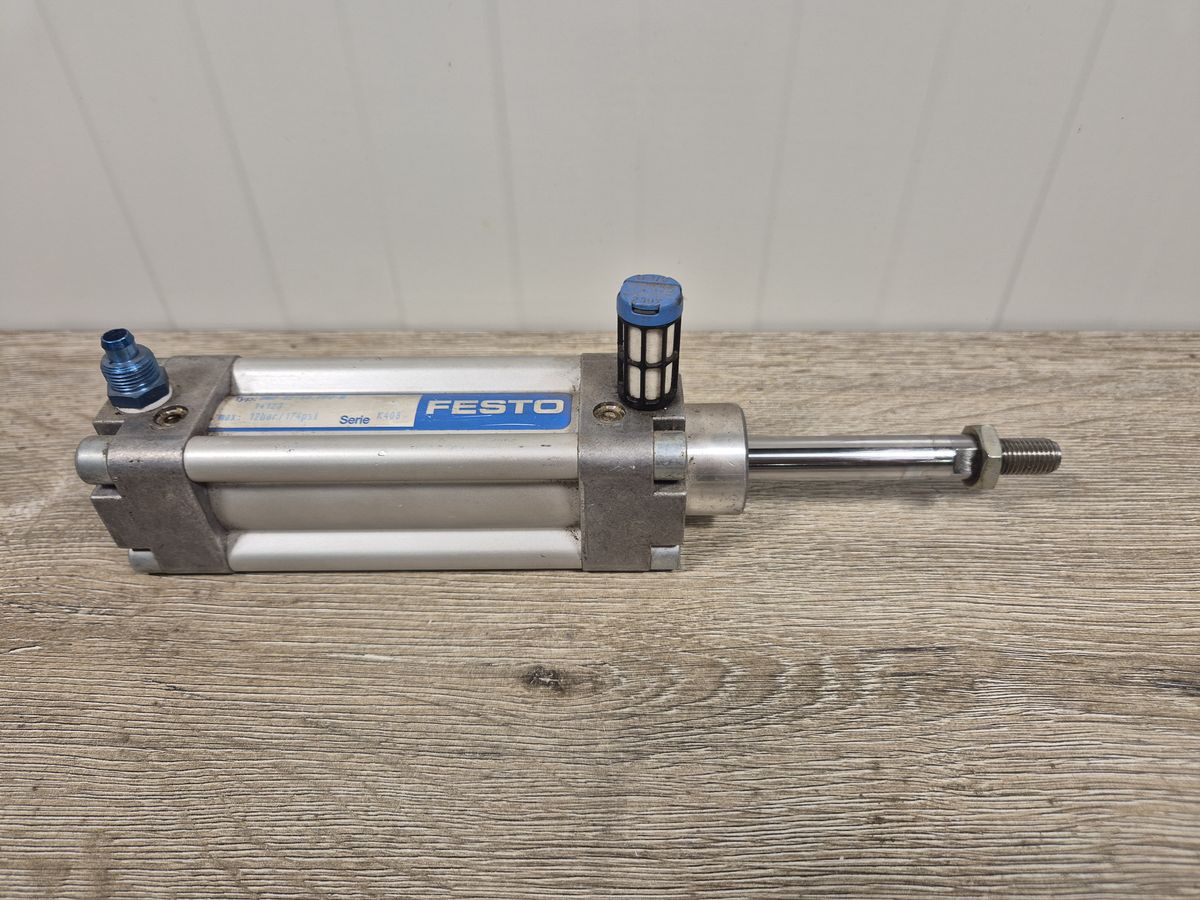

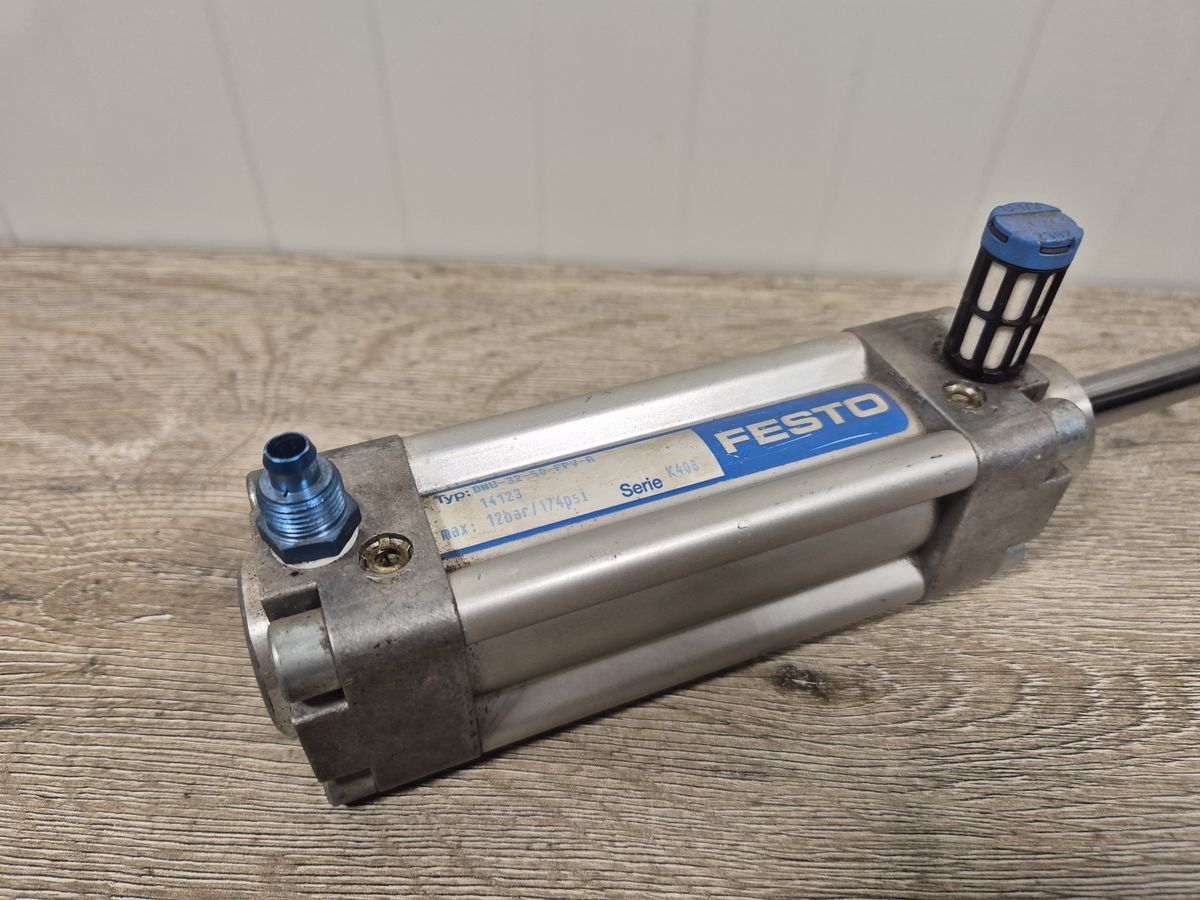

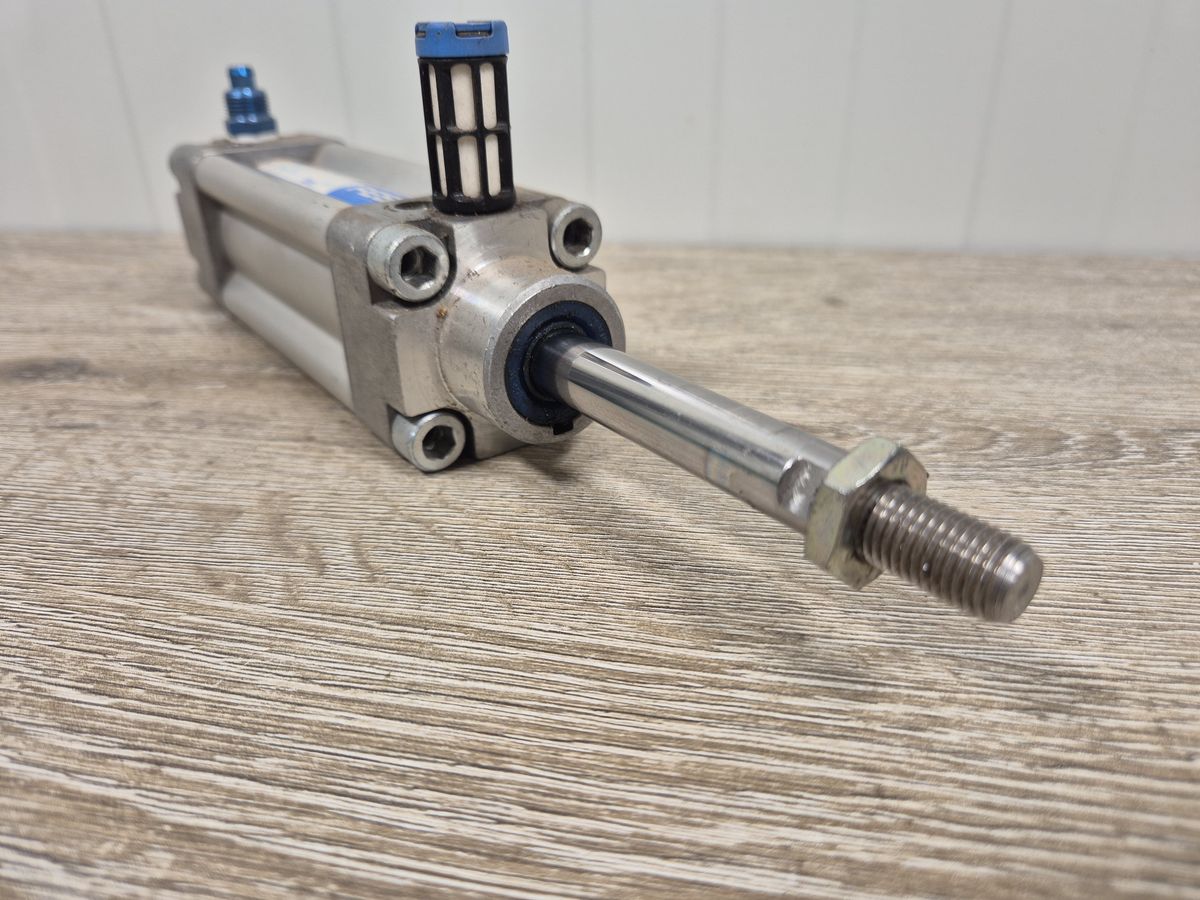

The Festo DNU-32-50-PPV-A is a double-acting standard pneumatic cylinder with a 32 mm bore and a 50 mm stroke. It features adjustable pneumatic cushioning at both ends (PPV) and contactless position sensing capability via integrated magnets (A). It is rated for industrial automation applications with operating pressures up to 12 bar (174 psi).

Specifications – DNU-32-50-PPV-A

Parameter	Specification
Part number	14123
Piston diameter	32 mm
Stroke length	50 mm
Max. pressure	12 bar / 174 psi
Series code	K408
