Pneumatické pohony

Swagelok SC00015-3U F04-N-DS-11 AZNX MS-A15-3 DIN

SKU: 4018

Na sklade

Použité
Získané z pracovného prostredia

Cena na vyžiadanie

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Dôležité: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Záručné lehoty podľa podmienok

Nový 12 mesiace

Zrenovované DOA

Použité DOA

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

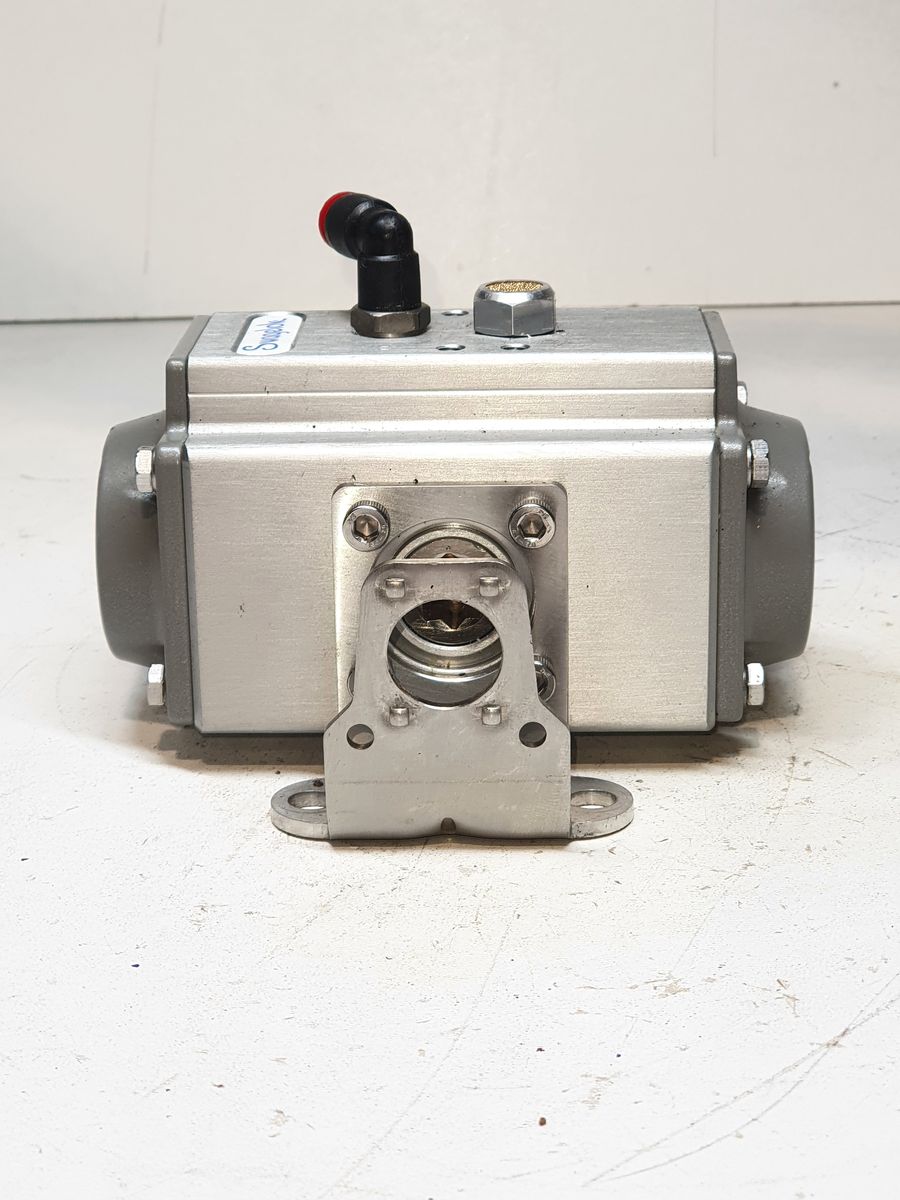

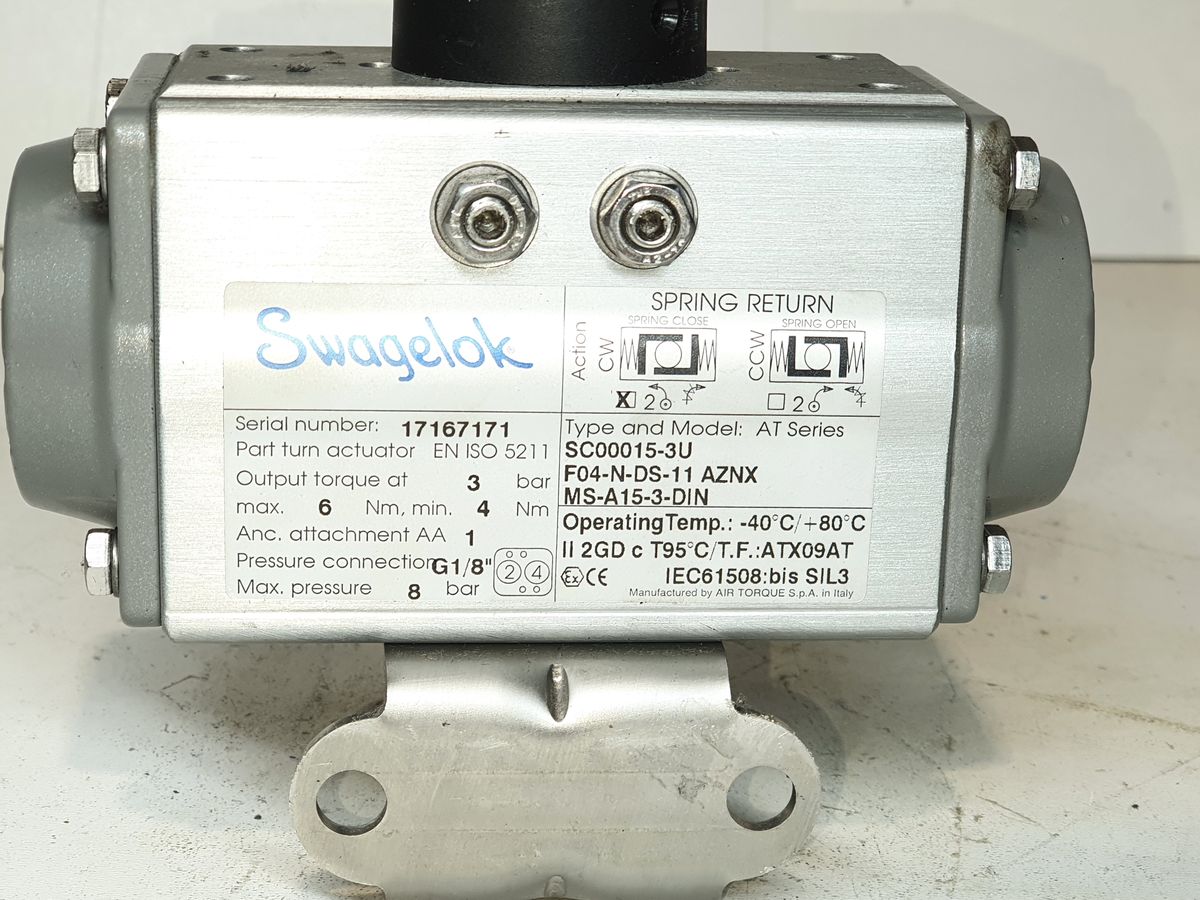

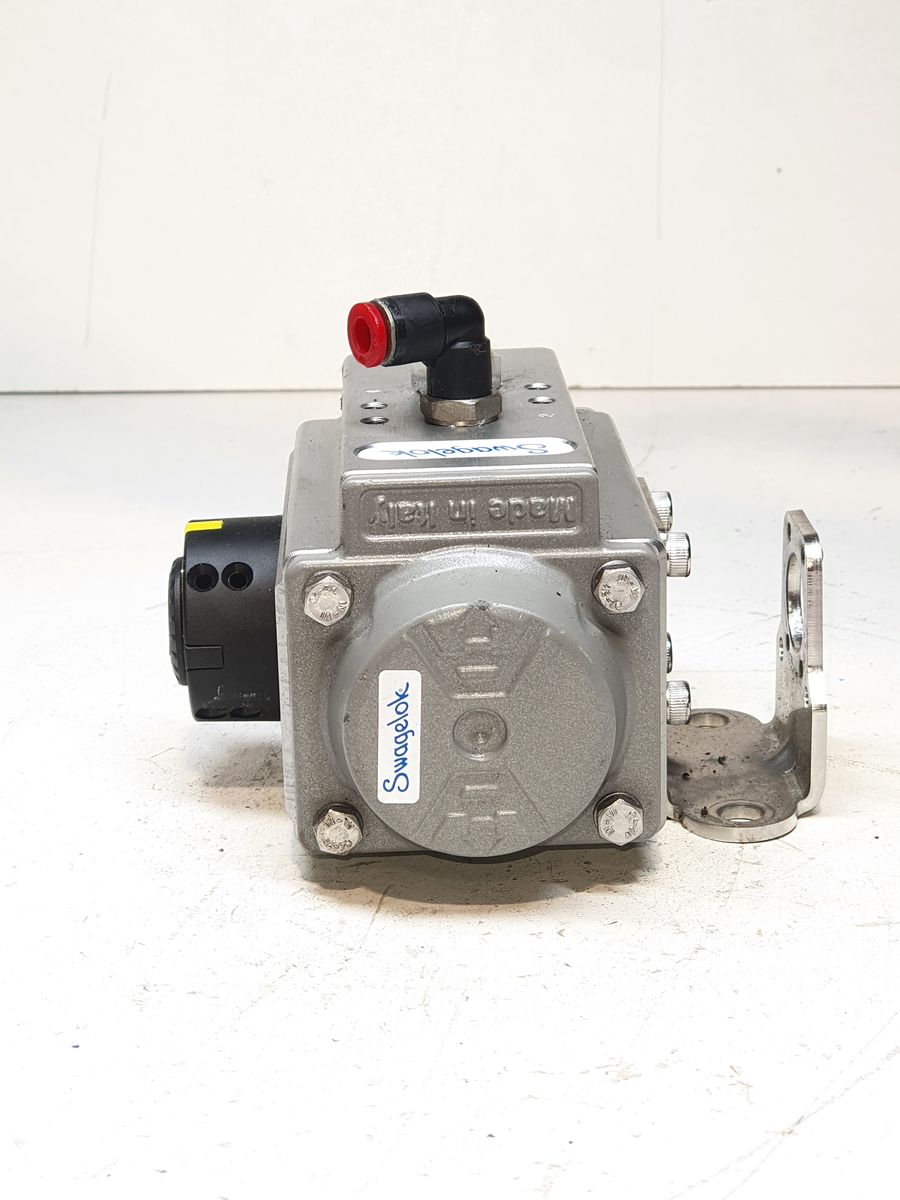

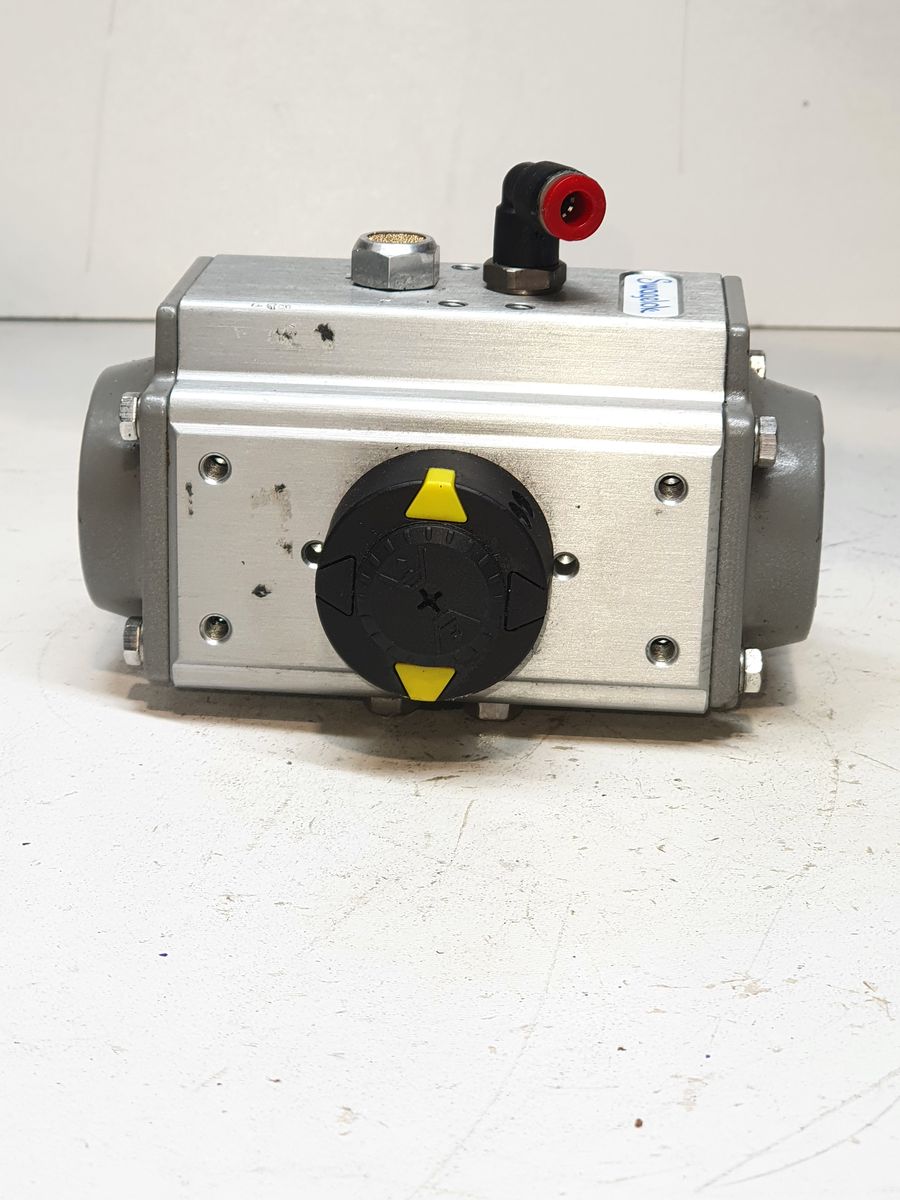

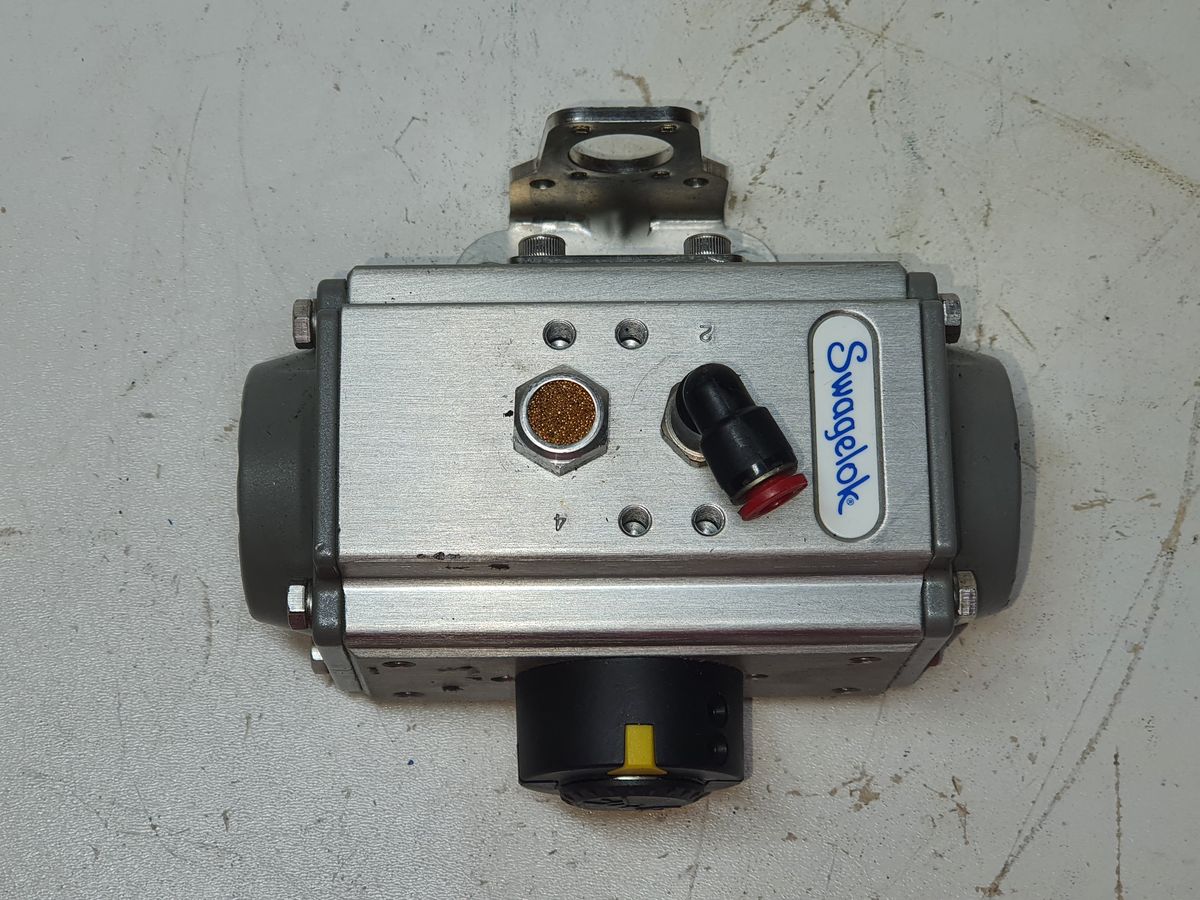

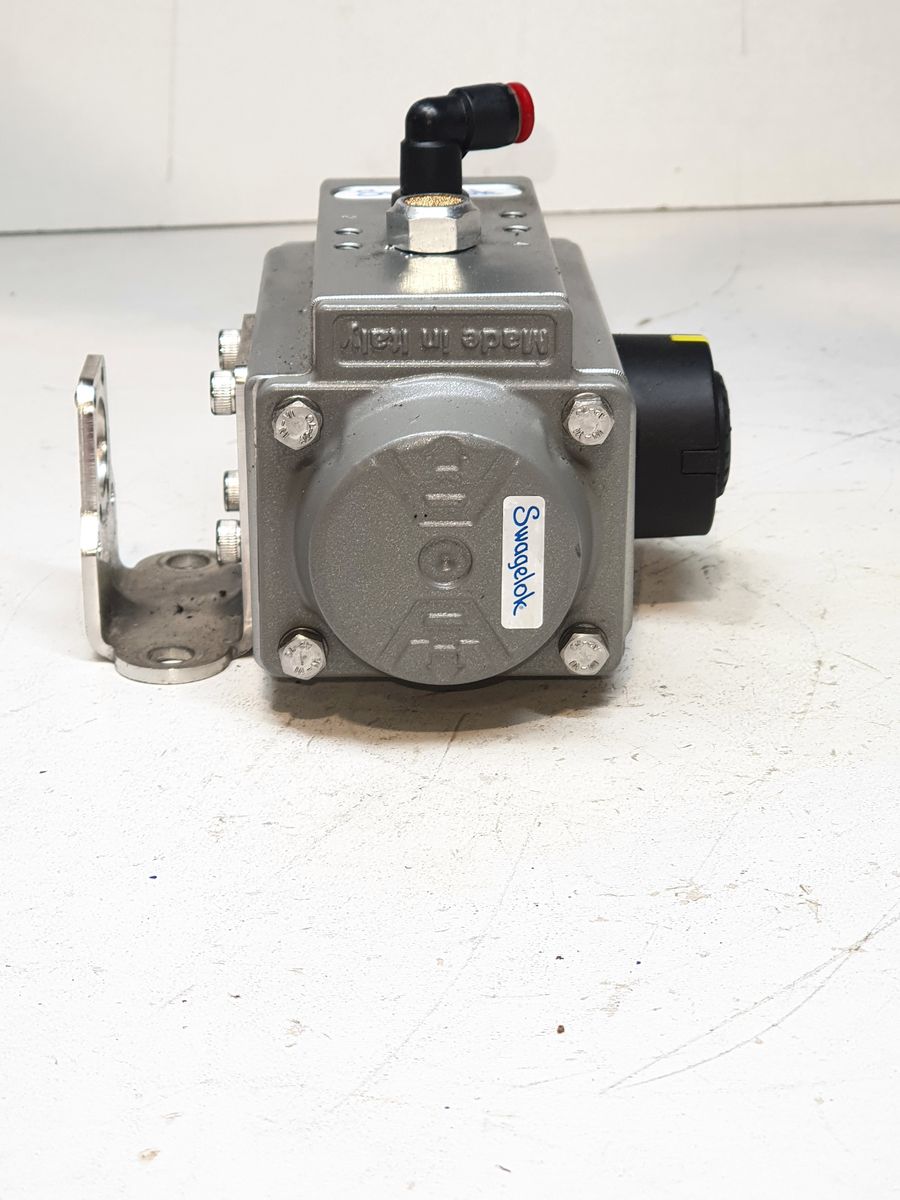

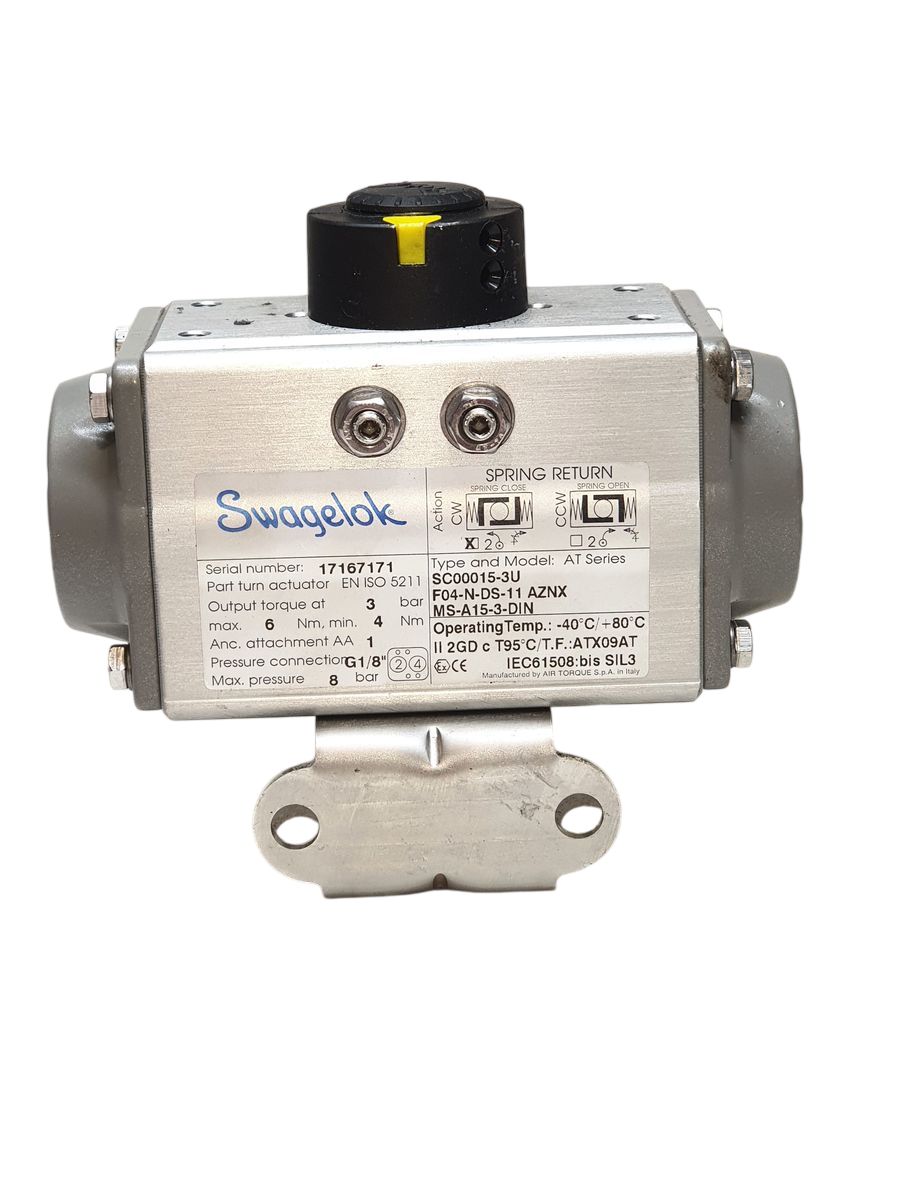

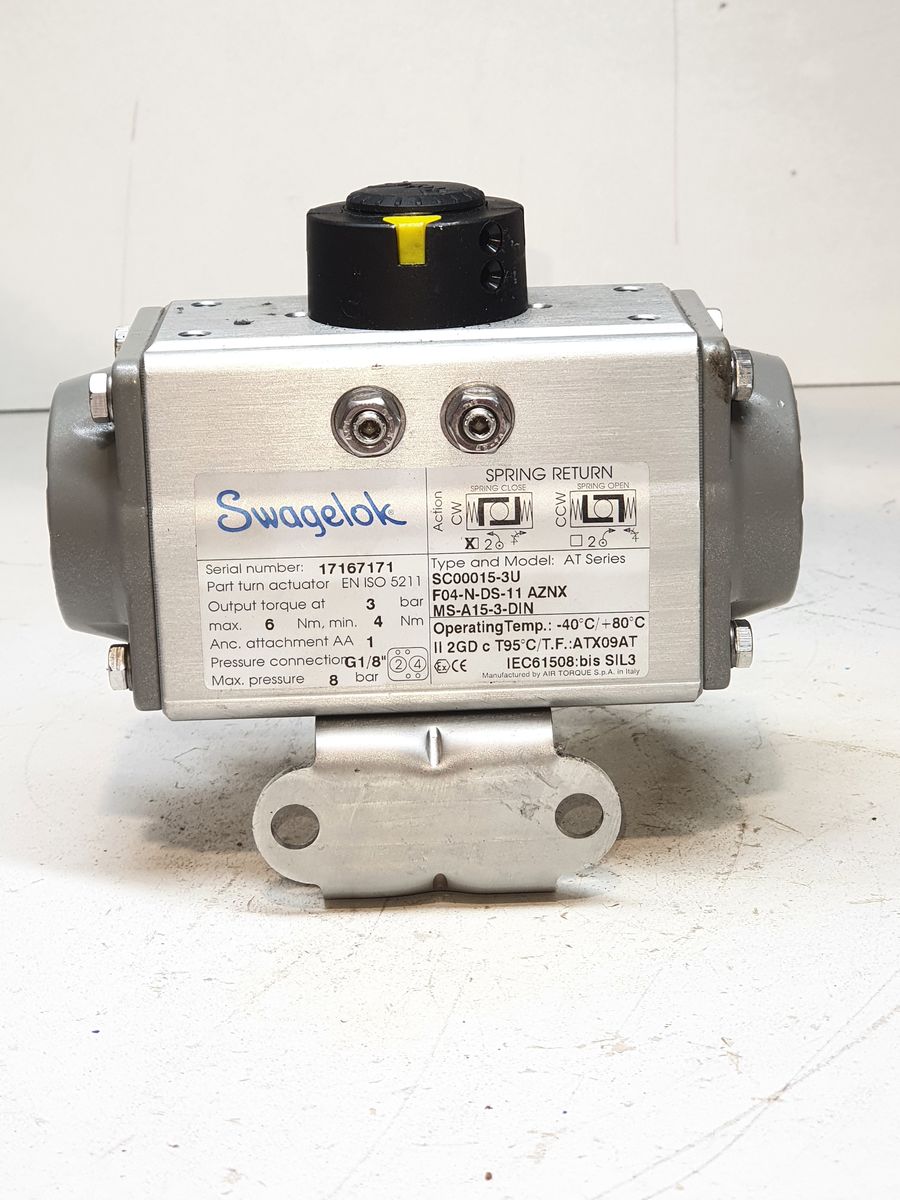

Swagelok SC00015-3U Pneumatic Actuator

Category	Parameter
Manufacturer	Air Torque S.p.A. (Italy)
Brand / Series	Swagelok AT Series
Type	Pneumatic part-turn actuator
Operation	Spring return (spring close / spring open)
Rotation Angle	90° (quarter turn)
Output Torque	Minimum: 4 NmMaximum: 6 Nm
Maximum Operating Pressure	8 bar
Air Connection	G 1/8"
Mounting Standard	EN ISO 5211
Ambient Temperature Range	−40 °C to +80 °C
ATEX Classification	II 2GD c T95°C / T.F. ATX09 AT
Safety Integrity Level	IEC 61508 – SIL 3
