Tlakomer

Swagelok PGI Pressure Gauge 0-60 bar 1/4 Tube Fitting Female 63mm

SKU: 6007

Na sklade

Použité
Získané z pracovného prostredia

Bez DPH: €45,00 (1 dostupné)

Vrátane DPH: €54,45

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Dôležité: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Záručné lehoty podľa podmienok

Nový 12 mesiace

Zrenovované 3 mesiace

Použité DOA

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

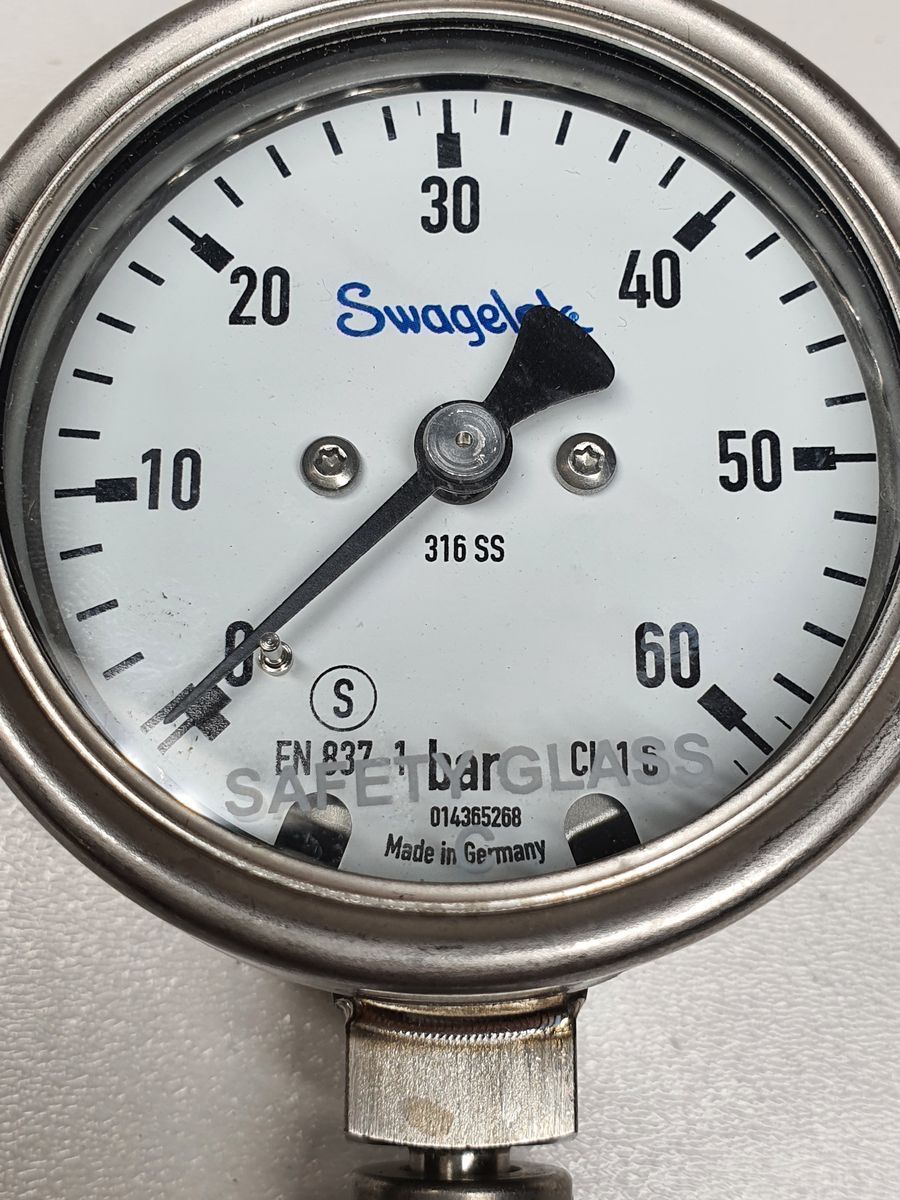

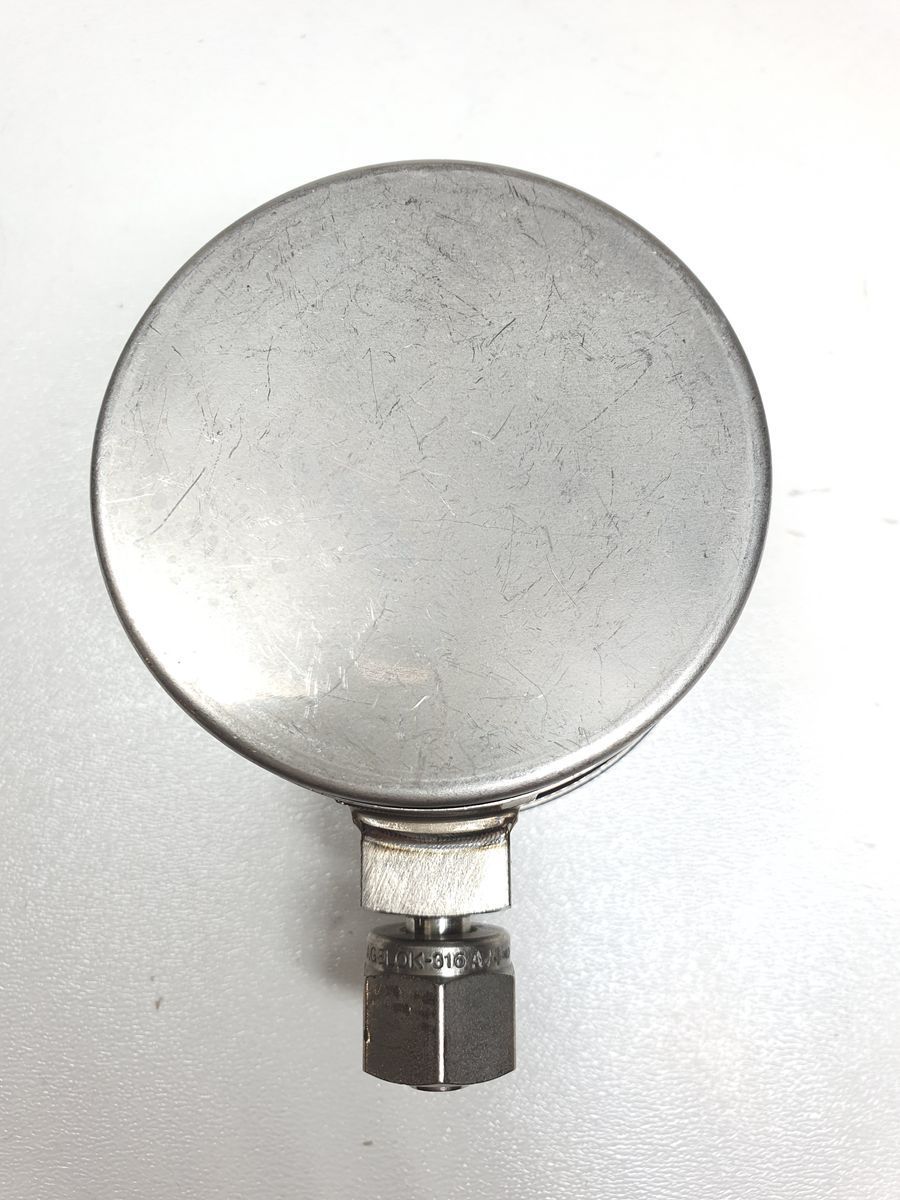

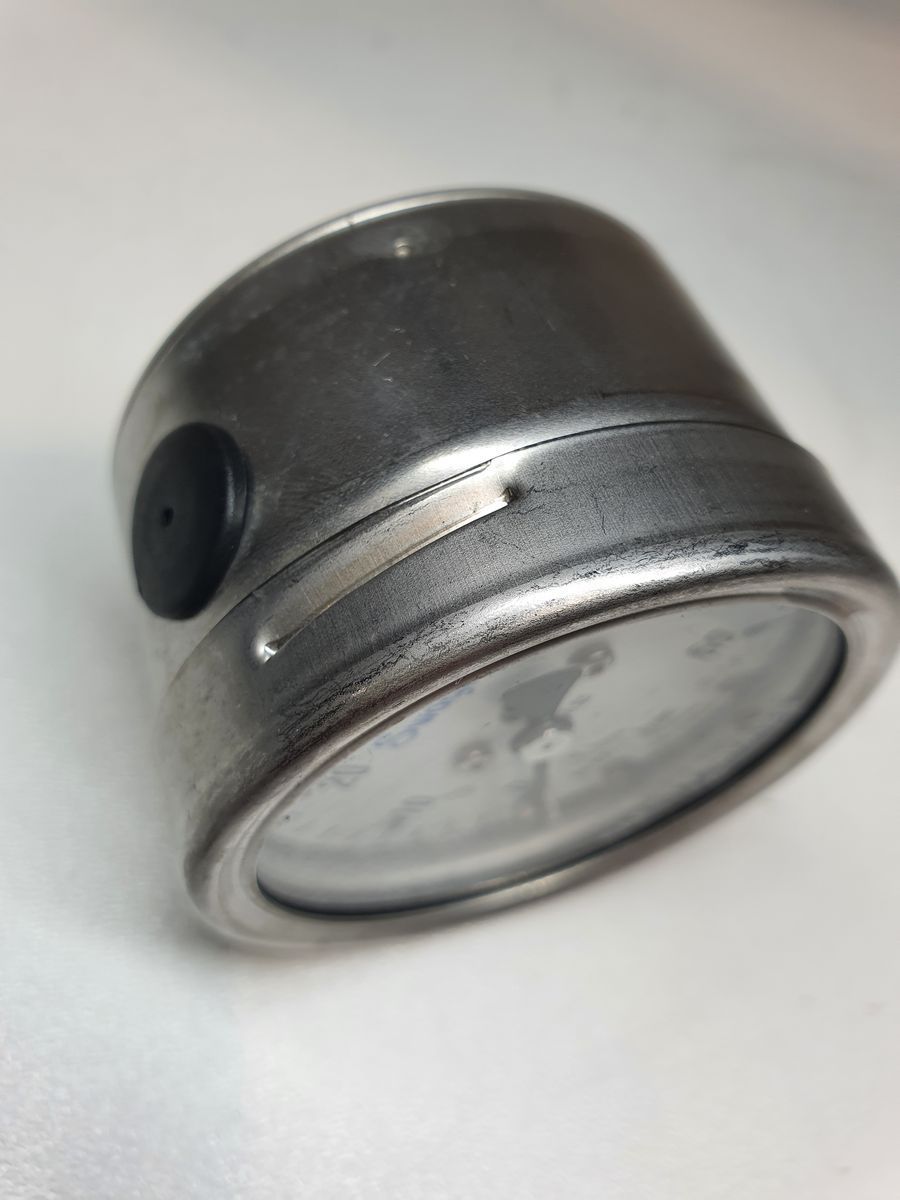

The Swagelok Pressure Gauge 0-60 bar, CL 1.6, 316SS

Category	Parameter
Standard Compliance	EN 837-1 (EU mechanical pressure gauge standard)
Dial Size	63 mm (2.5 in)
Pressure Range	0–60 bar (870 psi)
Case Material	Stainless steel
Wetted Materials	316 stainless steel
Safety Glass	Type C
Window	Polycarbonate or tempered glass (variant-dependent)
Internals	Bourdon tube mechanism for stable, repeatable measurement
Accuracy	±1.6% of full scale (PGI 63 mm standard)
Temperature Range	Typically −20 °C to +60 °C (varies by fill/configuration)
Vibration Resistance	Optional liquid-filled case for enhanced stability
Process Connection	1/4" NPT (common on 63 mm PGI gauges)
Mounting	Lower mount (code “C” = center back or bottom connection depending on variant)
