Kontaktor

finder 22.32.0.024.4340

SKU: 7029

Na sklade

Použité
Získané z pracovného prostredia

Bez DPH: €20,00 (1 dostupné)

Vrátane DPH: €24,20

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Dôležité: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Záručné lehoty podľa podmienok

Nový 12 mesiace

Zrenovované 6 mesiace

Použité 3 mesiace

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

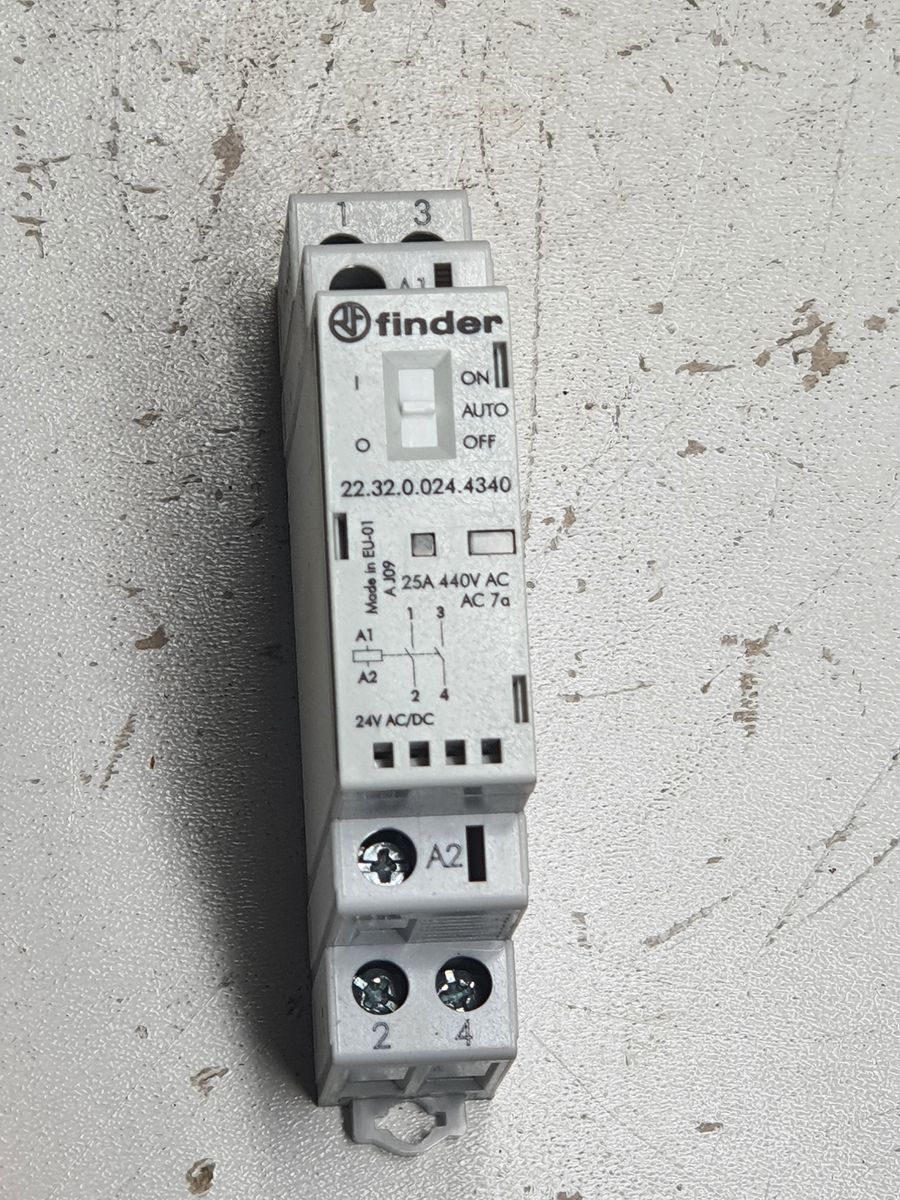

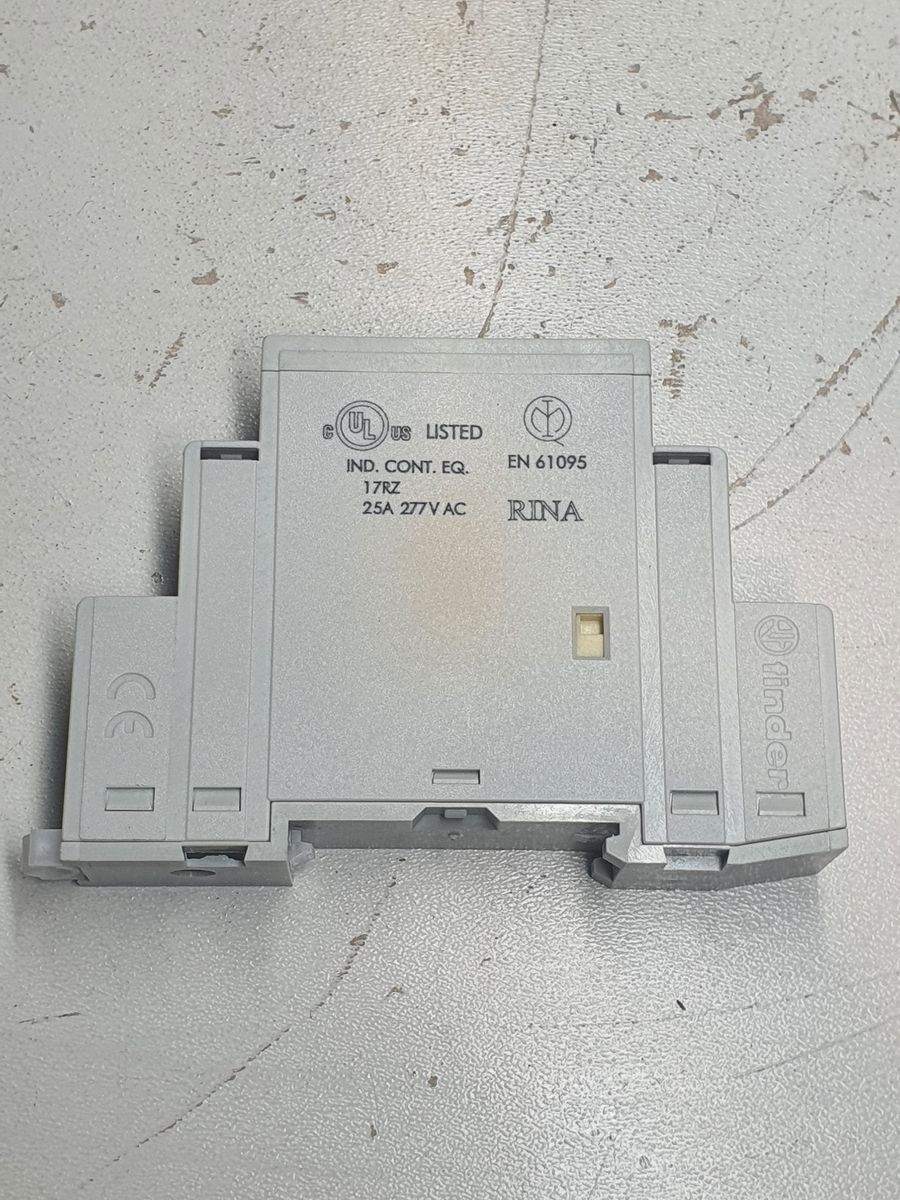

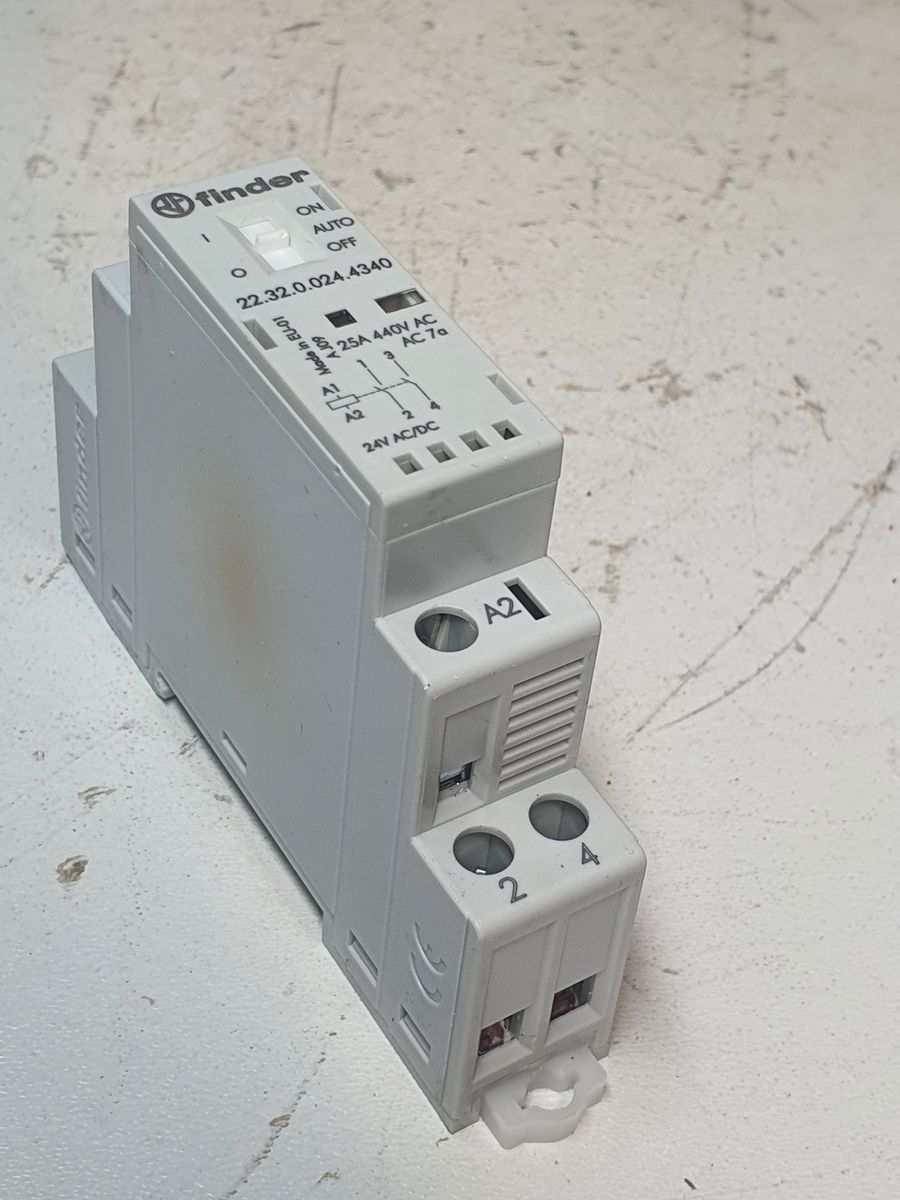

Finder Series 22 - Installation Assistant Switch 22.32.0.024.4340

Specifications:

Attribute	Value
Rated Control (Coil) Voltage	24 V
Number of Normally Open (NO) Contacts	2
Number of Normally Closed (NC) Contacts	0
Operating (Rated) Voltage	250 – 440 V
Protection Rating	IP20
Width in Modular Units	1
Hum-Free Operation	Yes
Utilization Category (EN IEC 60947-4-1)	AC-7a / AC-7b
Utilization Category (EN 954-1)	1
Installation Depth	60.8 mm
Max. Load – Fluorescent Lamp (Duo Circuit)	500 VA
Max. Load – Fluorescent Lamp (Parallel Compensated)	200 VA
Max. Load – Fluorescent Lamp	800 VA
Max. Incandescent Lamp Load	2000 W
Day/Night Function	No
Auxiliary Device Possible	Yes
Rated Operational Current	25 A
Manual Override Slider	Yes
Operating Voltage Type	AC/DC
Coil Voltage Type	AC/DC
